High Speed Photodetector, 200-1100 nm UV-Silicon Detector, 118 MHz

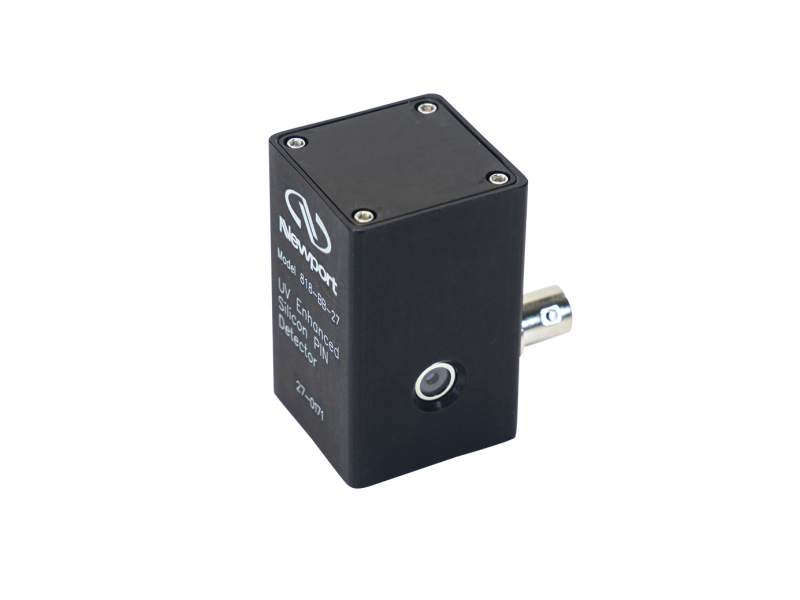

The 818-BB-27 High Speed UV Enhanced Silicon Optical Detector consists of a silicon detector with an enhanced ultraviolet response, making it well suited for the fourth harmonic Nd:YAG, YLF or Glass Lasers and Excimer Lasers. Additionally, its large 2.55 mm active diameter and 3 ns rise time make it an excellent general-purpose biased detector for the 200 to 1100 nm wavelength region. To attain its fast response, this detector comes with a 24 VDC external power supply. It is equivalent to Coherent's Model ET-2070 (P/N 120-10134-0001).

Silicon Free Space Optical Detectors

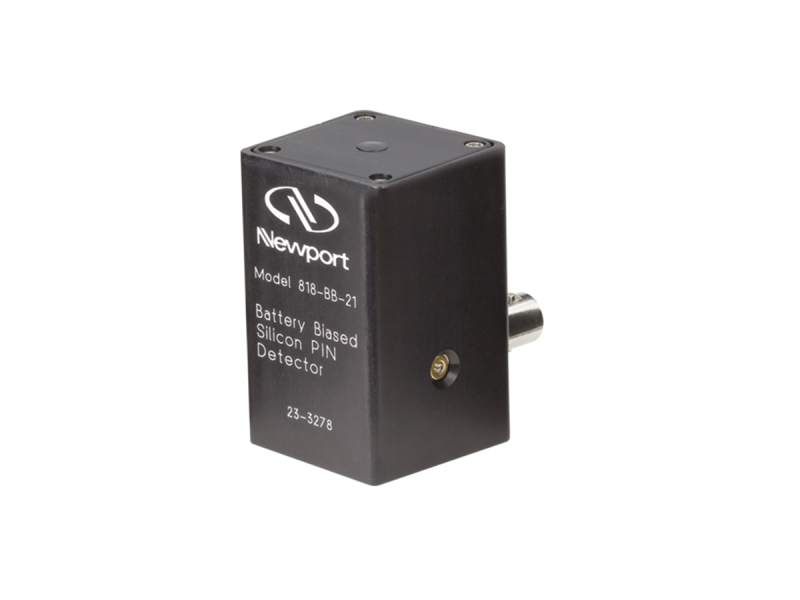

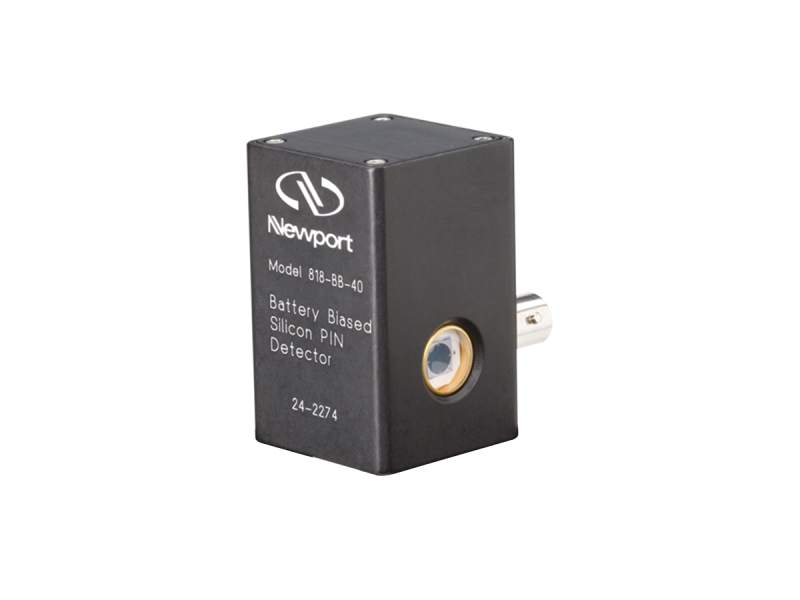

The 818-BB-21 and -40 consist of free-space, small and large area Silicon detectors, with rise times ranging from 300 ps to 1.5 ns. Each unit, other than the 818-BB-40, includes a built-in bias supply consisting of standard 3 V lithium cells and a 50 ohm BNC connector output. The 818-BB-40 comes with an external 24 VDC power supply.

UV-Enhanced Silicon Free Space Detector

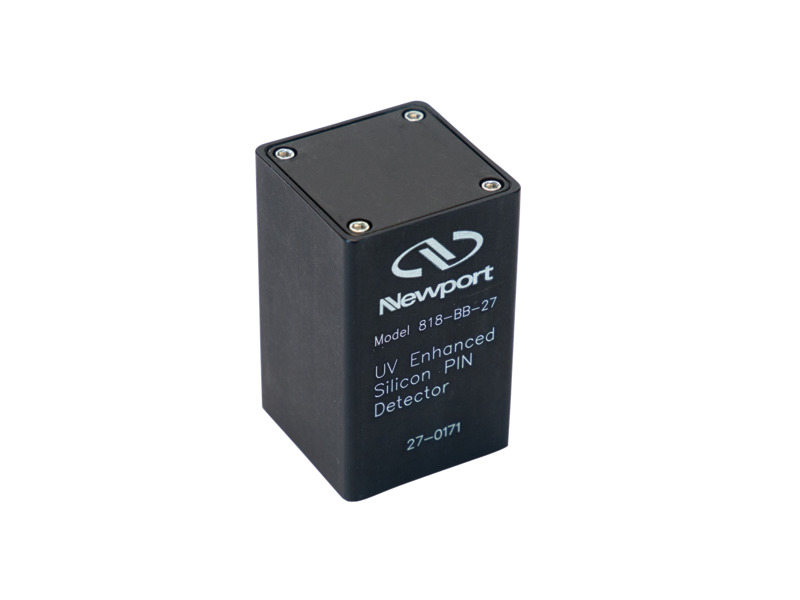

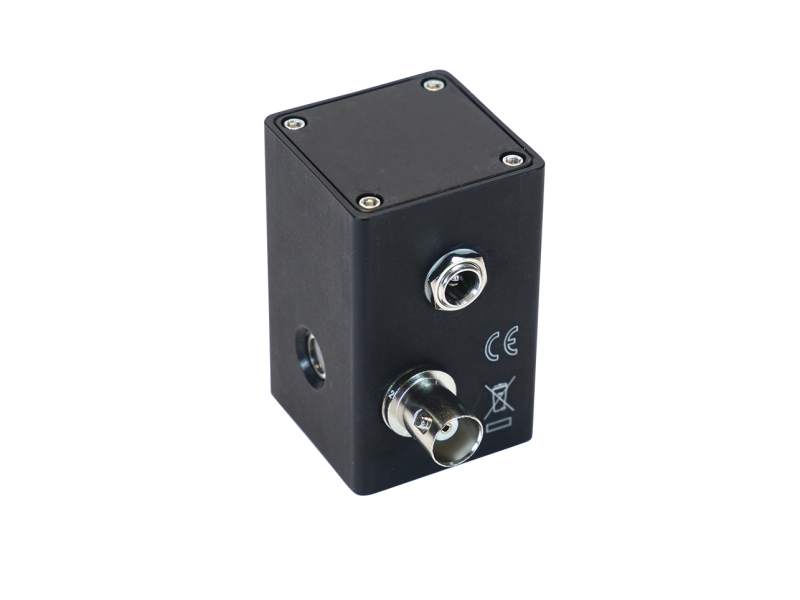

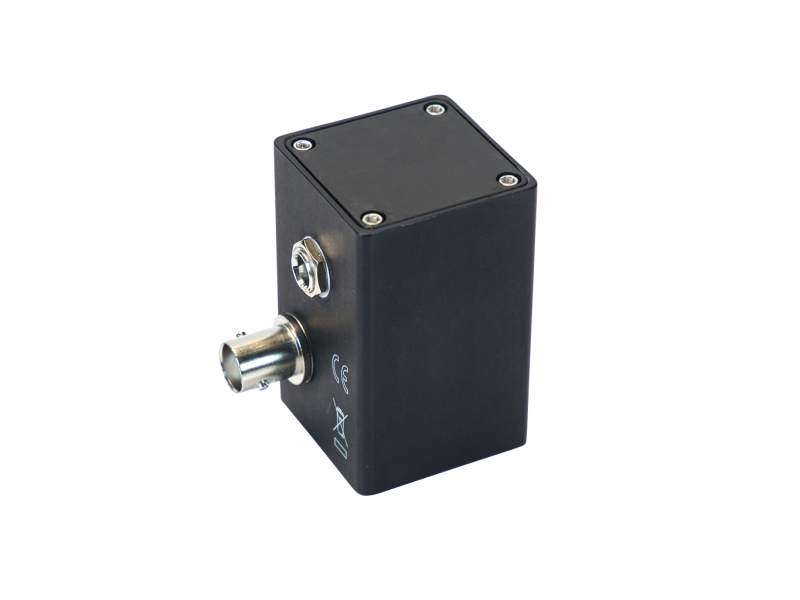

The 818-BB-27 consists of a silicon detector with an enhanced ultraviolet response, making it well suited for the fourth harmonic Nd:YAG, YLF or Glass Lasers and Excimer Lasers. Additionally, its large active area and fast response time make it an excellent general-purpose biased detector for the 200 to 1100 nm wavelength region. To attain its fast response, this detector comes with a 24 VDC external power supply.

InGaAs Free Space Detectors

The 818-BB-30, -31, and -35 consist of free-space, small and large area InGaAs detectors, with rise times ranging from 300 ps to 1.5 ns for covering the 800-1750 nm wavelength range. Each unit includes a built-in bias supply consisting of standard 3 V lithium cells and a 50 ohm BNC connector output. The 818-BB-51 features an extended InGaAs photodetector with a wavelength range of 1475–2100 nm.

GaAs Free Space Detector

The 818-BB-45 high speed optical detector consists of free-space 40 µm diameter GaAs photodetector, with a 30 ps rise time and 12.5 GHz bandwidth. It includes a built-in bias supply consisting of single 3 V lithium cell and a 50 ohm BNC connector output. The batteries are easily replaceable and by disconnecting the detector from the oscilloscope input, when not in use, you can extend the lifetime of the batteries.

Optical Post Mounting

An 8-32 threaded hole at the bottom of 818-BB biased photoreceivers allows for optical post mounting.

Handle With ESD Care

These detectors are very susceptible to damage by electrostatic discharge (ESD). Please use ESD protective measures, like the FK-STRAP , when unpacking and handling these devices.

Rise Times as Fast as 25 ps

The 818-BB-35 and 818-BB-45 photodiode detector modules offer a low-cost solution for ultra-fast measurements offering a 12.5 GHz bandwidth. These detectors are suitable for applications where detector rise time of <25 ps (<30 ps for 818-BB-45) are required for Q-switched and Ultrafast Laser output analysis. These detectors also utilize 3 V lithium cells (supplied).

Specifications

Technical Specs

Optical Input
Free Space
Device Type
Biased Detector
Detector Diameter
2.55 mm
Detector Material
UV Enhanced Silicon
Detector Type
PIN
Acceptance Angle
50°
Wavelength Range
200-1100 nm
3 dB Bandwidth
DC to 118 MHz
Rise Time
3 ns
Responsivity
0.56 A/W @ 830 nm
Output Connector
BNC
Amplified
No

Bias Voltage
24 V
Cut-off Frequency
118 MHz
Dark Current
<10nA
Junction Capacitance
<25 pF
Measurement Type
Beam shape, frequency
Reverse Breakdown
150 V
NEP
<0.1 pW/√Hz
Fall Time
3ns
Saturation Current
2.5 mA
Thread Type
8-32 and M4

Optical Input
Free Space
Device Type
Biased Detector
Detector Diameter
2.55 mm
Detector Material
UV Enhanced Silicon
Detector Type
PIN
Acceptance Angle
50°
Wavelength Range
200-1100 nm
3 dB Bandwidth
DC to 118 MHz
Rise Time
3 ns
Responsivity
0.56 A/W @ 830 nm
Output Connector
BNC
Amplified
No

Bias Voltage
24 V
Cut-off Frequency
118 MHz
Dark Current
<10nA
Junction Capacitance
<25 pF
Measurement Type
Beam shape, frequency
Reverse Breakdown
150 V
NEP
<0.1 pW/√Hz
Fall Time
3ns
Saturation Current
2.5 mA
Thread Type
8-32 and M4

Resources & Downloads

Related Products

Accessories

Description	Compatibility	Avail.	Price
F-IRC1IR Sensor Card, 750-1350 nm, 2 in. Square Sensor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$200
F-IRC2-SIR Sensor Card, 800-1700 nm, 1 in. x 1.5 in. Sensor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$110
FK-STRAPWrist Strap, Grounding (RoHS and / or CE Pending)	UNIVERSAL	In Stock	$20

Similar

Description	Compatibility	Avail.	Price
1621Nanosecond Photodetector, 350-1000 nm, 0.8 mm Silicon Detector, 1 ns	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$665
818-BB-21High Speed Photodetector, 320-1000 nm Battery Biased Silicon Detector, 1.2 GHz	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$520

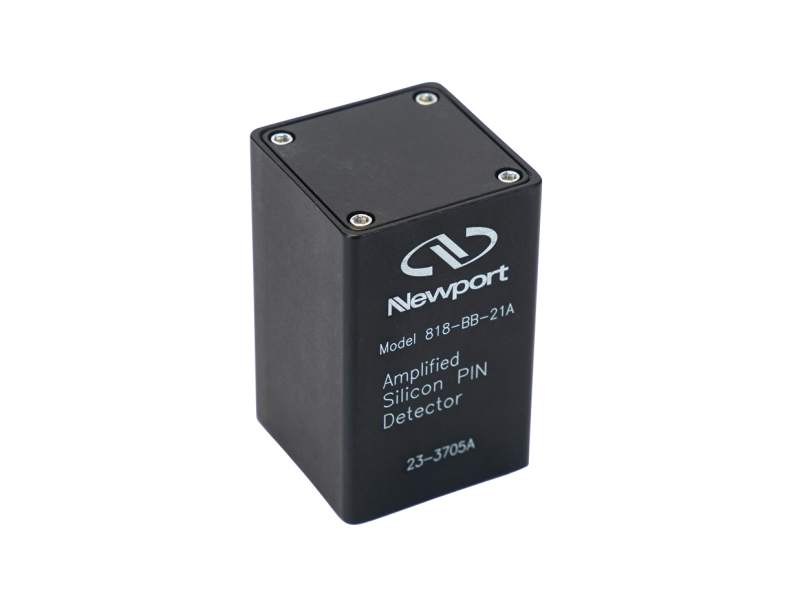

818-BB-21AOptical Receiver, AC coupled, 320-1000 nm Biased Silicon Detector, 1.2 GHz	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$700
