Dielectric Mirror, Broadband, Zerodur, 25.4 mm, 700-950 nm

High-Performance Zerodur Dielectric Mirrors

The 10Z40BD.2 Broadband Dielectric Mirror is an extremely versatile mirror for laboratory applications and highly efficient over a broad wavelength range. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Zerodur substrate. Zerodur is a glass-ceramic material where thermal expansion is nominally zero. This extra stability can be critical for applications requiring diffraction limited performance. The BD.2 coating offers high reflectance for near infrared diode laser applications. The BD-2 coating is extremely durable and will withstand repeated cleaning. This mirror has a λ/20 surface flatness and a 10-2 surface quality.

Specifications

Technical Specs

Wavelength Region
NIR
Wavelength Range
700-950 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Zerodur^® or equivalent
Coating Type
Broadband Dielectric
Coating Code
BD.2
Surface Quality
10-2 scratch-dig
Surface Flatness
λ/20 at 632.8 nm
Substrate Number
10Z40

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
Rs (avg)>99%, Rp (ave)>97% @ 700-950 nm,R(avg)>80% at 632.8 nm
Damage Threshold
1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
NIR
Wavelength Range
700-950 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Zerodur^® or equivalent
Coating Type
Broadband Dielectric
Coating Code
BD.2
Surface Quality
10-2 scratch-dig
Surface Flatness
λ/20 at 632.8 nm
Substrate Number
10Z40

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
Rs (avg)>99%, Rp (ave)>97% @ 700-950 nm,R(avg)>80% at 632.8 nm
Damage Threshold
1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

Other

10Z40BD.2 RoHS Certificate(263.1 kB, PDF)
10Z40BD.2_ROHS2-2021.pdf(0, PDF)
BD.2 Raw Data.xlsx(82.6 kB, XLSX)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		10Z20BD.2Dielectric Mirror, Broadband, Zerodur, 25.4 mm, λ/10, 700-950 nm	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$167
		10D20BD.2Dielectric Mirror, Broadband, 25.4 mm Diameter, 700-950 nm	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$106

Compatible

Description	Compatibility	Avail.	Price
LH-1DBMirror Mount, Fixed, 25.4 mm Diameter, 8-32 Thread, A-LINE	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$24
M1Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
U100-A2KMirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 2 Locking Knobs	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$150
SU100TW-F2KMirror Mount, ZeroDrift, 25.4 mm, Two 100 TPI Knob, Low Wavefront Distortion	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$354

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		20Z40BD.2Dielectric Mirror, Broadband, Zerodur, 50.8 mm, 700-950 nm	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$509

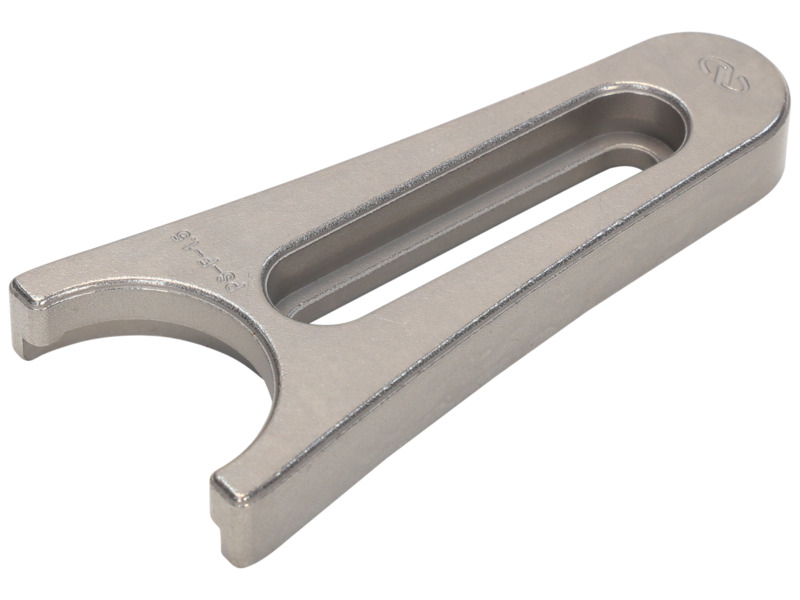

		PS-F-1.5Clamping Fork, 1.0 in. Diameter Pedestal, 1.5 in. Slot Length, 1/4-20 (M6) Slot	UNIVERSAL		In Stock	$11.90
