Sorry, this product is no longer offered for sale.

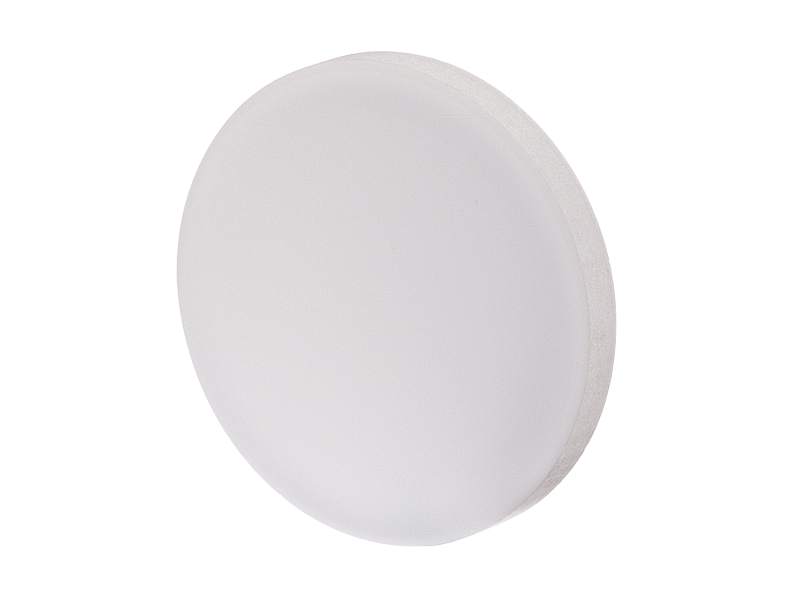

Optical Disk Diffuser, 25.4 mm Diameter, 25.4 mm Aperture

The 10DIFF-VIS Flashed Opal Optical Disk Diffusers is significantly less expensive than integrating spheres and is easily mounted in a simple optic holder. Diffusers scatter incident light, thereby reducing the sensitivity of a detection system to slight positional or angle changes in an incoming beam. They can also be used to improve the uniformity of a light source. For many measurements, particularly of very low signals, optical disk diffusers are more practical and economical than other diffusing options. This 1 inch (25.4 mm) diffuser has a thin diffusing glass coating bonded to a clear glass substrate. It is close to ideal in performance, which creates much loss for collimated beams as they are now scattered into 4p steradians. Our diffusers' spectral transmittance range is 400 to 800 nm, but since short wavelengths scatter more, these are better diffusers for the visible than for IR radiation.
Please note that this product is slated for obsolescence. Sales are limited only to stock on hand.
Resources & Downloads
Other
10DIFF-VIS RoHS Certificate(264.2 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

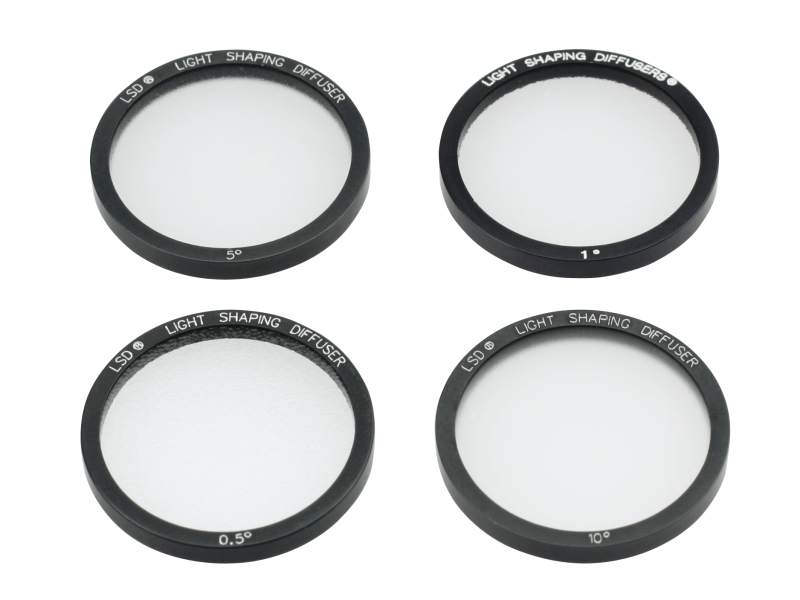

![]() | 10DKIT-C1Diffuser Kit, Circular Light Shaping, Narrow, 25.4 mm, 0.5,1,5,10° | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
