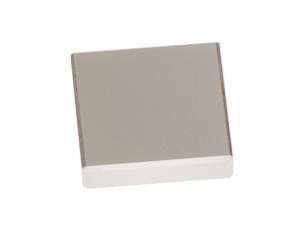

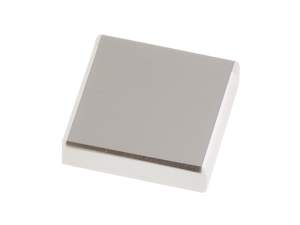

Economy Square Broadband Metallic Mirrors

Economy Square Mirrors set a new standard of value and performance. They are best suited for prototype development, proof-of-concept or educational applications, where power loss, dispersion or wavefront distortion are not critical.

Best value square mirrors for general purpose lab use
40-20 scratch-dig Borofloat® 33 substrates
Broader bandwidth and less expensive than dielectric coatings
Four metallic coatings covering the UV to IR bands

See All Features

Show Filters:

Showing 10 of 16 total products

Compatibility:

Description	Compatibility	Wavelength Range	Mirror Size	Thickness	Avail.	Price
05SD520AL.2UV Aluminum Mirror, Economy Borofloat, 12.7 mm Square, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	12.7 x 12.7 mm	3.1 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$72
05SD520ER.1Aluminum Mirror, Economy, Borofloat, 12.7 mm Square, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	12.7 x 12.7 mm	3.1 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$61
05SD520ER.2Silver Mirror, Economy, Borofloat, 12.7 mm Square, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	12.7 x 12.7 mm	3.1 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$72
05SD520ER.4Gold Mirror, Economy, Borofloat, 12.7 mm Square, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	12.7 x 12.7 mm	3.1 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$88
07SD520AL.2UV Aluminum Mirror, Economy, Borofloat 19.05 mm Square, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	19.05 x 19.05 mm	4.57 mm	In Stock	$73
07SD520ER.1Aluminum Mirror, Economy, Borofloat, 19.05 mm Square, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	19.05 x 19.05 mm	4.57 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$72
07SD520ER.2Silver Mirror, Economy, Borofloat, 19.05 mm Square, λ/10, 480-20,000 nm	UNIVERSAL	480-20000 nm	19.05 x 19.05 mm	4.57 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$98
07SD520ER.4Gold Mirror, Economy, Borofloat, 19.05 mm Square, λ/10, 650-20,000 nm	UNIVERSAL	650-20000 nm	19.05 x 19.05 mm	4.57 mm	In Stock	$109
10SD520AL.2UV Aluminum Mirror, Economy, Borofloat, 25.4 mm Square, λ/10, 250-600 nm	UNIVERSAL	250-600 nm	25.4 x 25.4 mm	6.0 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$100
10SD520ER.1Aluminum Mirror, Economy, Borofloat, 25.4 mm Square, λ/10, 450-700 nm	UNIVERSAL	450-700 nm	25.4 x 25.4 mm	6.0 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$93

Show All

Specifications

Wavelength Range
250-600 nm, 450-700 nm, 480-20000 nm
Mirror Shape
Square
Mirror Size
12.7 x 12.7 mm, 19.05 x 19.05 mm, 25.4 x 25.4 mm, 50.8 x 50.8 mm
Thickness
3.1 mm, 4.57 mm, 6.0 mm, 12.7 mm
Material
Borofloat 33
Surface Flatness
λ/10 at 632.8 nm

Angle of Incidence
0-15°
Clear Aperture
≥ central 80% of diameter
Thickness Tolerance
±0.25 mm
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Features

Borofloat® 33 Substrates

Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.

Maximum Value Optics

Newport's economy class of optics includes mirrors, lenses, objectives, and prisms. They were developed for customers who require inexpensive yet effective optics to perform prototyping, basic optical demonstrations or experiments. The performance of our economy class of optics is equivalent to many other commercially available products at similar prices. They provide maximum value while delivering the quality associated with Newport products. For more information, refer to Economy Optics Selection Guide.

Enhanced Aluminum UV Coating

Our AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with average reflectivity greater than 90% from 250 – 600 nm. The aluminum film is overcoated with UV transparent magnesium fluoride to prevent oxidation of the metal.

Enhanced Aluminum VIS-NIR Coating

Our ER.1 enhanced aluminum coating may be used wherever a broadband visible and near infrared reflector is needed. A multilayer dielectric stack deposited over the aluminum film boosts reflectance and improves the durability of the coating. Average reflectivity is greater than 93% from 450-700 nm.

Protected Silver VIS-IR Coating

Our ER.2 protected silver coating is composed of a low emissivity silver film fully encapsulated by a multilayer dielectric stack to prevent oxidation. This coating has excellent broadband reflectivity in the IR, while maintaining very good performance in the visible and near IR. Average reflectivity is greater than 96% from 480 – 1100 nm and greater than 98.5% from 1.1 – 20 µm. This silver mirror is a favorite for Ultrafast scientists who want an inexpensive option.

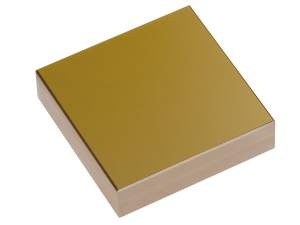

Protected Gold NIR-IR Coating

Our ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. Average reflectivity is greater than 96% from 650 – 1700 nm and greater than 98% from 1.7 – 2.0 µm.
