UV Aluminum Mirror, Economy, Borofloat, 25.4 mm Square, λ/10, 250-600 nm

Economy Square Broadband Metallic Mirrors

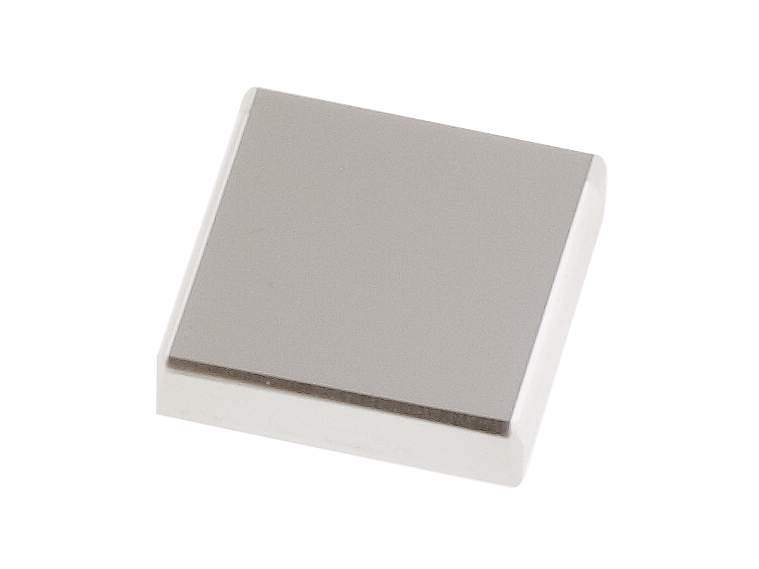

The 10SD520AL.2 is an Economy UV Enhanced Aluminum Broadband Square Mirror. By taking advantage of advanced polishing techniques and our high-volume manufacturing, these mirrors are truly cost effective. This 25.4 x 25.4 mm (1.0 x 1.0 inch) square mirror is made from 6.0 mm thick Borofloat® 33 substrate which is coated with the AL.2 aluminum coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with an average reflectivity greater than 90% from 250–600 nm. The AL.2 aluminum coating contains a durable dielectric overcoat to prevent oxidation of the metal. This mirror has a λ/10 surface flatness and a 60-40 surface quality.

Specifications

Technical Specs

Wavelength Region
UV
Wavelength Range
250-600 nm
Mirror Shape
Square
Mirror Size
25.4 x 25.4 mm
Thickness
6.0 mm
Material
Borofloat® 33
Coating Type
UV Enhanced Aluminum
Coating Code
AL.2
Surface Quality
60-40 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10SD520
Angle of Incidence
0-15°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>90% @ 250-600 nm
Damage Threshold
2 J/cm², 10 ns pulses , 20 Hz at 355 nm
Size Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
UV
Wavelength Range
250-600 nm
Mirror Shape
Square
Mirror Size
25.4 x 25.4 mm
Thickness
6.0 mm
Material
Borofloat® 33
Coating Type
UV Enhanced Aluminum
Coating Code
AL.2
Surface Quality
60-40 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10SD520
Angle of Incidence
0-15°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>90% @ 250-600 nm
Damage Threshold
2 J/cm², 10 ns pulses , 20 Hz at 355 nm
Size Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
