XY Adjustable Variable Size Lens Mounts
XY Adjustable Variable Size Lens Mounts
Universal variable lens mounts provide support and XY positioning for optics of various size and thickness. The XY adjustability allows for lenses of different sizes to have the same optical axis height.
- Variable size lens mounting for 6 to 60 mm lenses
- Lenses can be on a common optical axis regardless of size
- Provides fine XY centering adjustability
- Positive optic loading without risk of damage
- Adjustable mounts with rigid, individually adjustable support arms See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AC-1AVariable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | AC-2AVariable Size Lens Mount, 17.8-57.1 mm, Thumbscrew Support Arms | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

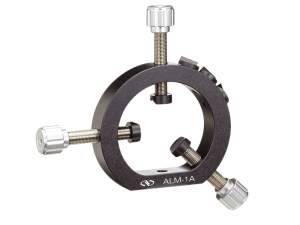

 | ALM-1AVariable Size Lens Mount, 12.7-35 mm, 40 TPI XY Adjusters | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

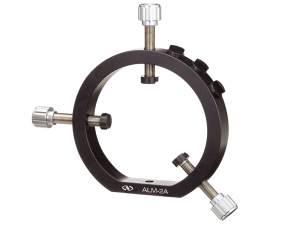

 | ALM-2AVariable Size Lens Mount, 25.4-60 mm, 40 TPI XY Adjusters | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
| Models | | | | | |
|---|---|---|---|---|---|
| Optic Diameter | 5.0-46.2 mm | 17.8-57.1 mm | 12.7-35.0 mm | 25.4-60.0 mm | |
| Adjustments | Fixed | Fixed | XY | XY | |
| Optical Axis Height | 31.8 mm | 38.1 mm | 25.4 mm | 38.1 mm | |
| Thread Type | 8-32 (M4) CLR | 8-32 (M4) CLR | 8-32 (M4) CLR | 8-32 (M4) CLR | |
| Use | On-Axis Lens Mounting | On-Axis Lens Mounting | XY Lens Positioning | XY Lens Positioning |
Features

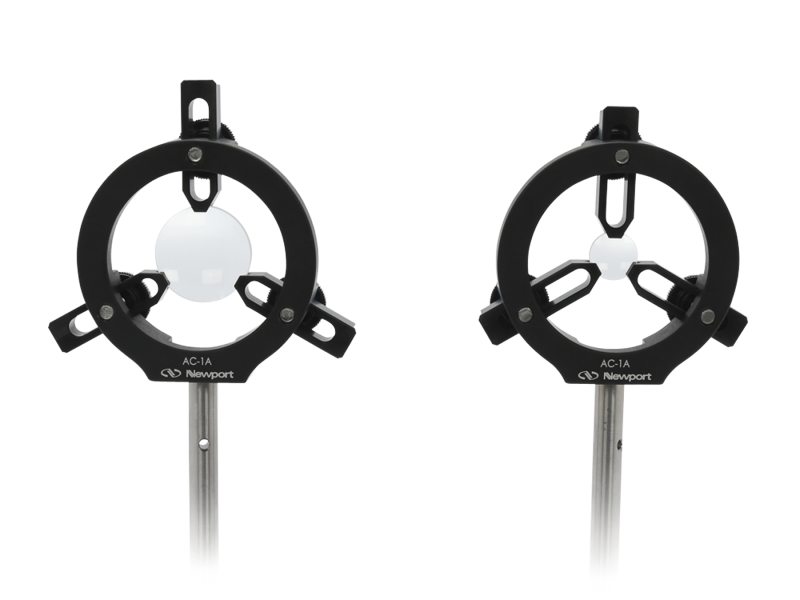

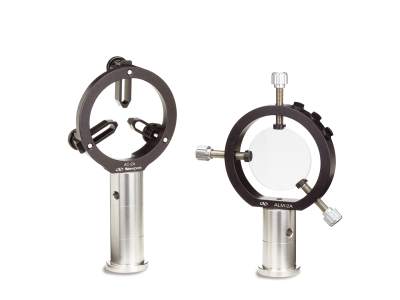

Common Optical Axis for All Size Lenses
The radial design of these universal lens mounts allows lenses to always be on a common optical axis regardless of diameter.
Fine XY Adjustable Versions
Lenses can be precisely located within a XY range of +/- 2 mm by three 40 TPI stainless steel shaft assemblies, two rigid and one spring-loaded; each has removable Delrin V-groove tips. Installing optics is easy. Set the two rigid steel shafts to the desired radius, insert your element and adjust the spring loaded shaft until the optic is held securely in place. In addition to the snap-in V-groove tips for mounting thin optics, a set of L-shaped tips for mounting thick lenses, mirrors and beamsplitters is also included.
