Specifications
Type

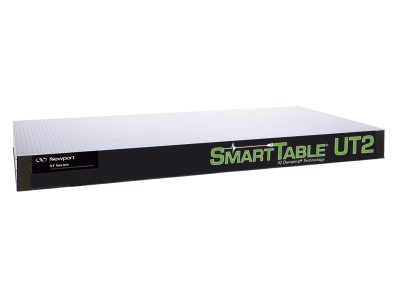

Upgradable SmartTable® Optical Table Top

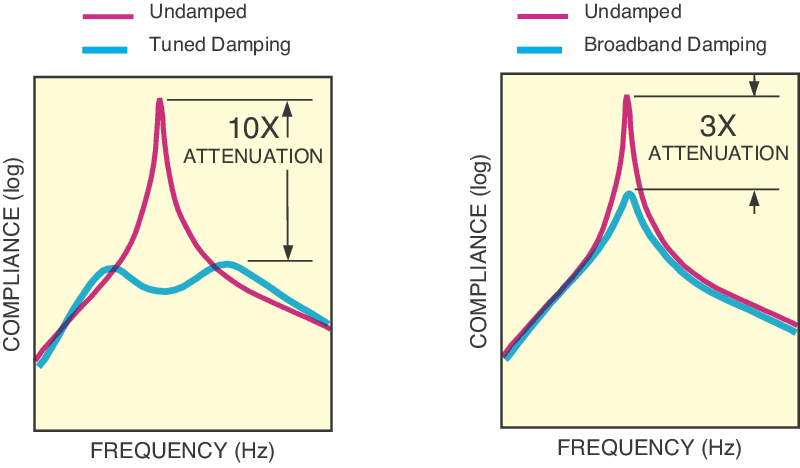

Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
2 Precision Tuned Dampers

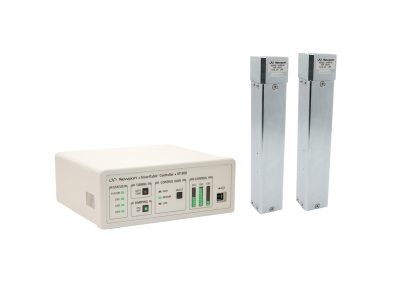

Active Damping
Upgradable to Active Damping
Working Surface
4.8 mm thick ferromagnetic 430 stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over 2 ft. (600 mm) square
Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Alpha-Numeric Grid Labels
Yes
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Bottom Skin Material
4.8 mm thick carbon steel
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
