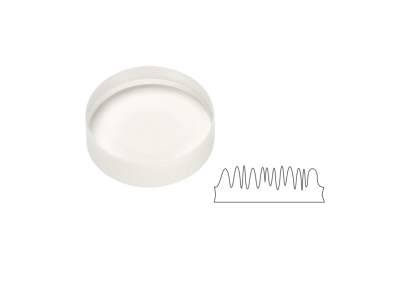

Nanotexture Surface Plano-Convex Lenses

Specifications

Technical Specs

Lens Shape
Plano-Convex
Diameter
12.7 mm
Lens Material
HPFS 7980 0A
Surface Quality
10-5 scratch-dig
Surface Accuracy, Irregularity
λ/10 at 632.8 nm, power removed

Chamfers
0.4 mm bevel
Chamfers Angle/Tolerance
45 ±15°
Clear Aperture
10.54 mm

Lens Shape
Plano-Convex
Diameter
12.7 mm
Lens Material
HPFS 7980 0A
Surface Quality
10-5 scratch-dig
Surface Accuracy, Irregularity
λ/10 at 632.8 nm, power removed

Chamfers
0.4 mm bevel
Chamfers Angle/Tolerance
45 ±15°
Clear Aperture
10.54 mm
