Bandpass Filter, Colored Glass, 25.4 mm, Blue Bandpass, BG40 Glass

Colored Glass Blue Absorptive Bandpass Filters

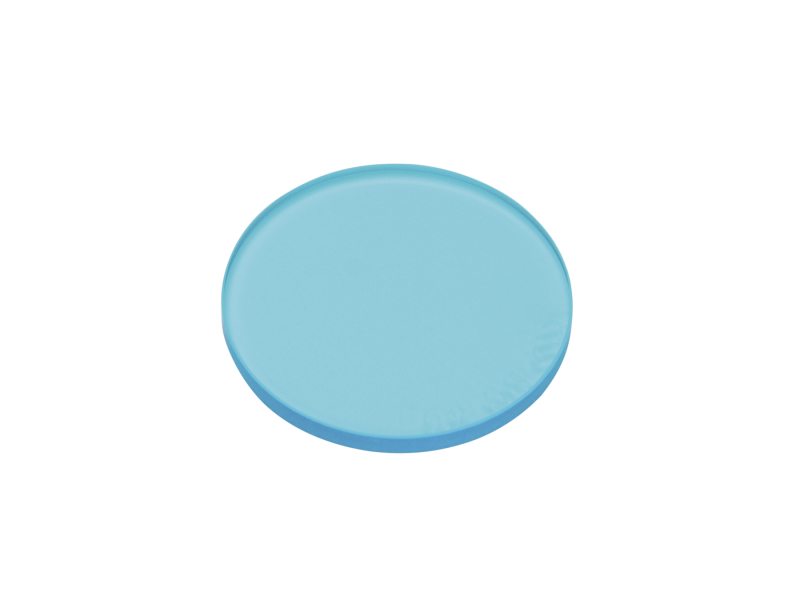

The FSR-BG40 Colored Glass Bandpass Filter is a 25.4 mm diameter blue bandpass optical filter made of Schott BG40 filter glass. This bandpass filter is precision polished for demanding research or OEM applications.

Specifications

Technical Specs

Type
Colored Glass Bandpass Filter
Material
Schott BG40 or equivalent
Center Wavelength
495 nm
FWHM
260 nm
Angle of Incidence
0°
Size
Ø25.4 mm
Size Tolerance
±0.3 mm
Thickness
2.0 to 3.0 mm, typical
Surface Flatness
≤1λ at 632.8 nm over the clear aperture

Surface Quality
60-40 scratch-dig
Damage Threshold
30 W/cm² CW, typical
Wedge
≤3 arc min
Clear Aperture
central ≥ 80% of diameter
Chamfers
Up to 1 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Type
Colored Glass Bandpass Filter
Material
Schott BG40 or equivalent
Center Wavelength
495 nm
FWHM
260 nm
Angle of Incidence
0°
Size
Ø25.4 mm
Size Tolerance
±0.3 mm
Thickness
2.0 to 3.0 mm, typical
Surface Flatness
≤1λ at 632.8 nm over the clear aperture

Surface Quality
60-40 scratch-dig
Damage Threshold
30 W/cm² CW, typical
Wedge
≤3 arc min
Clear Aperture
central ≥ 80% of diameter
Chamfers
Up to 1 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

FBR-NDXX-S(62 kB, PDF)

Other

FSR-BG40 RoHS Certificate(701.3 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price

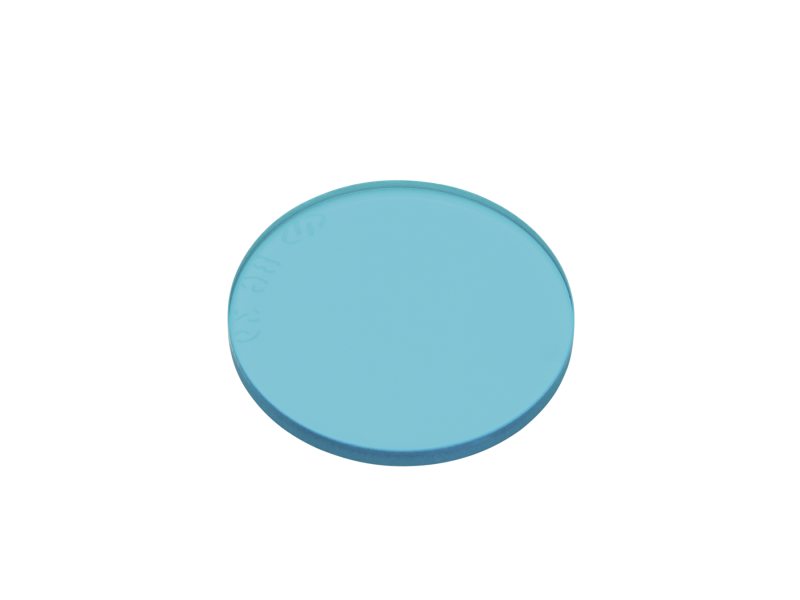

FSR-BG39Bandpass Filter, Colored Glass, 25.4 mm, Blue Bandpass, BG39 Glass	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$50

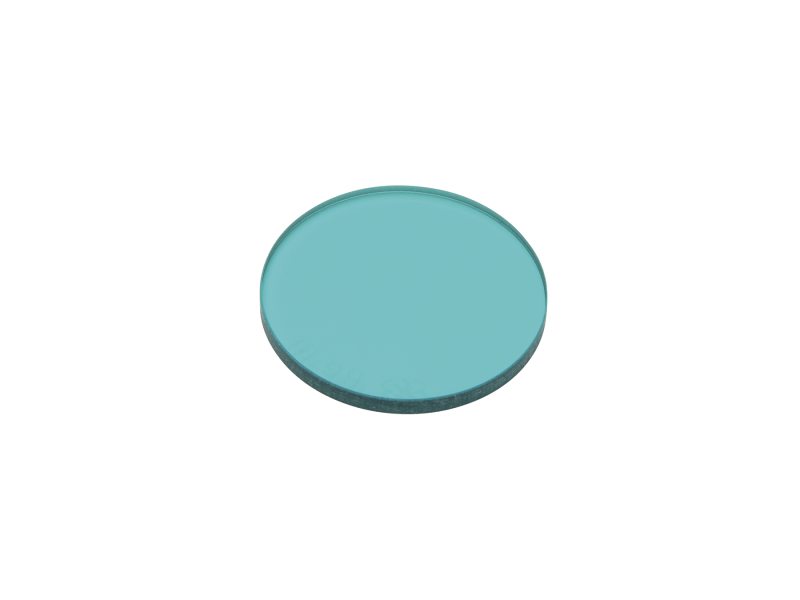

FSR-BG18Bandpass Filter, Colored Glass, 25.4 mm, Blue Bandpass, BG18 Glass	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$50
FSQ-BG40Bandpass Filter, Colored Glass, 50.8 x 50.8 mm, Blue Bandpass, BG40 Glass	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$85

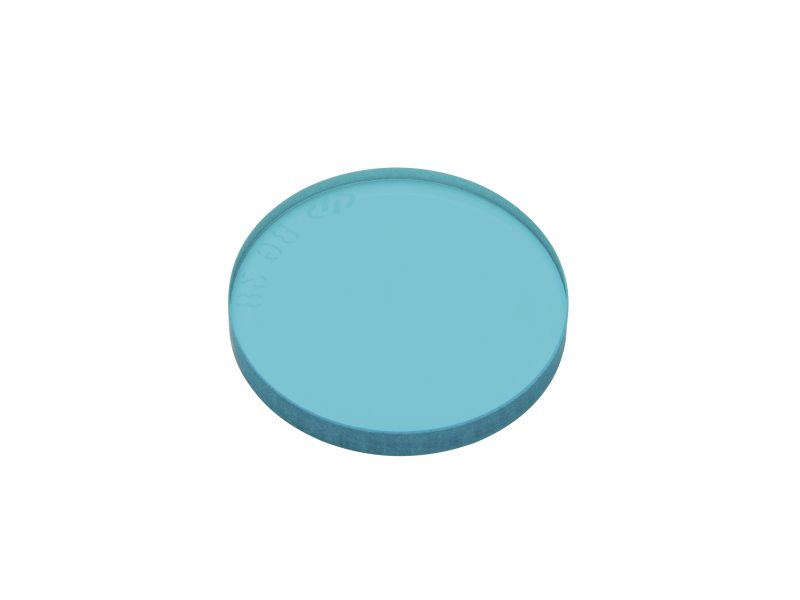

FSR-BG38Bandpass Filter, Colored Glass, 25.4 mm, Blue Bandpass, BG.38 Glass	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$50
