Sorry, this product is no longer offered for sale.

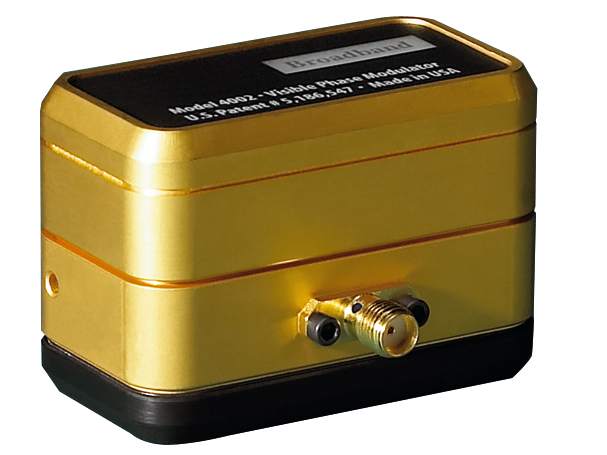

Phase Modulator, Broadband, DC-100 MHz. 500-900 nm, 8-32 and M4

The 4002 Broadband Phase Modulator operates over a broad range of frequencies from DC to 100 MHz. This visible EOM is for applications in the 500 to 900 nm visible regime. 8-32 and M4 mounting holes.

Specifications

Technical Specs

Type
Broadband Phase Modulator
Wavelength Range
500-900 nm
Material
MgO:LiNbO₃
Operating Frequency
DC-100 MHz
Aperture
Ø2 mm
VSWR
NA
Maximum Input Power
2 W/mm² @ 532 nm
Maximum RF Power
10 W

Maximum V
105 V @ 532 nm
RF Connector
SMA
Input Impedance
20 pF
RF Bandwidth
100 MHz
Modulation Depth
30 mrad/V @ 532 nm

Type
Broadband Phase Modulator
Wavelength Range
500-900 nm
Material
MgO:LiNbO₃
Operating Frequency
DC-100 MHz
Aperture
Ø2 mm
VSWR
NA
Maximum Input Power
2 W/mm² @ 532 nm
Maximum RF Power
10 W

Maximum V
105 V @ 532 nm
RF Connector
SMA
Input Impedance
20 pF
RF Bandwidth
100 MHz
Modulation Depth
30 mrad/V @ 532 nm

Phase Modulator, Broadband, DC-100 MHz. 500-900 nm, 8-32 and M4

Model: 4002
