05FC16PB.9 Cube Beamsplitter

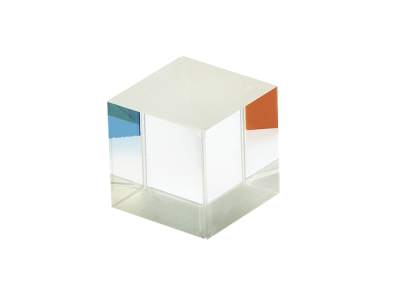

The 05FC16PB.9 Broadband Polarizing Cube Beamsplitter provides efficient polarization for use with multiple or tunable sources. The 12.7 mm cube polarizer consists of a pair of precision right-angle prisms carefully cemented together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for a 1200 to 1600 nm wavelength range. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses.
An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 500:1, yet it averages 1000:1. This unique component provides all the benefits of a broadband polarizer in a standard cube configuration.

Specifications

Technical Specs

Wavelength Range
1200-1600 nm
Size
12.7 x 12.7 x 12.7 mm
Shape
Cube
Material
SF 2, NSSK grade
Coating Type
Broadband polarizing
Coating Code
PB.9
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±5°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.5% average
Reflected Beam Deviation
90° ±5 arc min
Transmission
T_p >80%, >90% average
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >500:1, 1000:1 average
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
1200-1600 nm
Size
12.7 x 12.7 x 12.7 mm
Shape
Cube
Material
SF 2, NSSK grade
Coating Type
Broadband polarizing
Coating Code
PB.9
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±5°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.5% average
Reflected Beam Deviation
90° ±5 arc min
Transmission
T_p >80%, >90% average
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >500:1, 1000:1 average
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics
