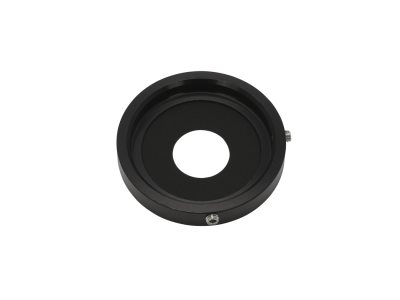

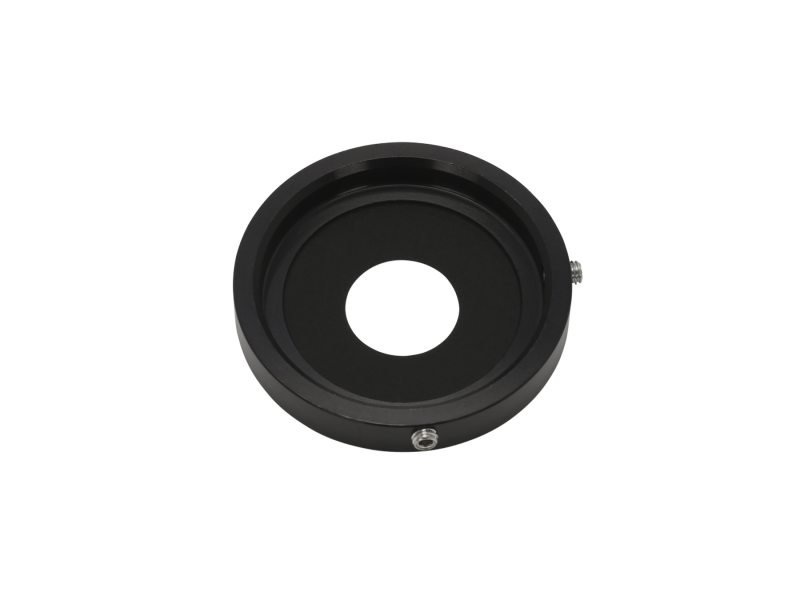

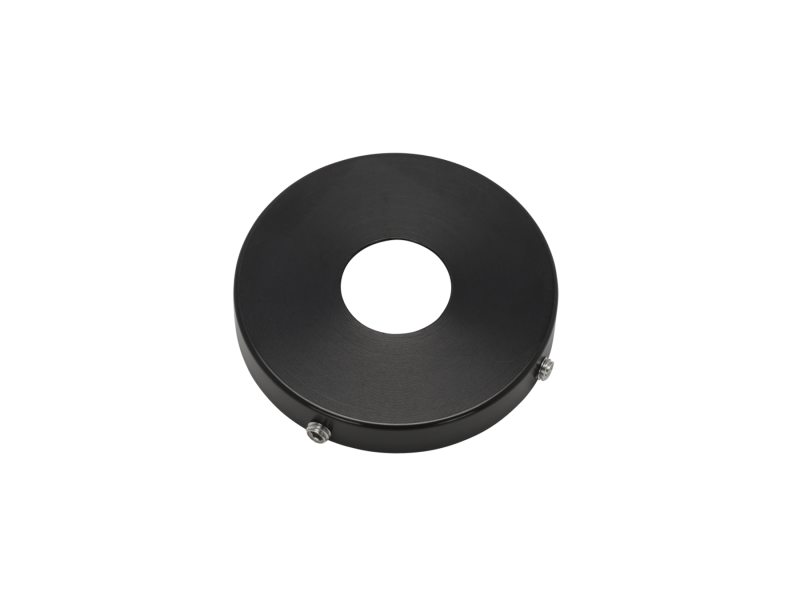

Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres
Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres
Model: 819M-B-0.50-1.0
Product Series Overview
Port Aperture Reducers for Integrating SpheresThe 819M-B-0.50-1.0 Port Reducer is used to reduce the port size of a 819C or 819D Series integrating sphere from 1 inch to 1/2 inch. Flat Black coating inside. Comes with a 1.5 mm Allen wrench and M3 set screws.
Specifications
- TypePort Aperture Reducer
- Detector Type819C & 819D Series
- Sphere MaterialFlat Black
- Port Size1.0 in.
- Clear Aperture0.5 in.
- MaterialBlack anodized aluminum
Resources & Downloads
2D Product Drawings
819M-B-0.50-1.0(288.7 kB, PDF)
Literature
Integrating Sphere Accessories Datasheet(773.9 kB, PDF)
