Dielectric Mirror, Broadband, 30.0 mm, 700-950 nm
Dielectric Mirror, Broadband, 30.0 mm, 700-950 nm
Model: 3MD20BD.2
Product Series Overview

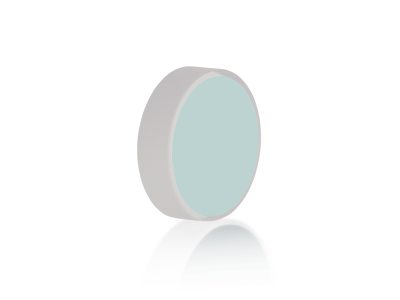

Standard Borofloat 33 Dielectric MirrorsThe 3MD20BD.2 Broadband Dielectric Mirror is an extremely versatile mirror for laboratory applications and highly efficient over a broad wavelength range. This 1.181 inch (30.0 mm) diameter mirror is made from a 6.0 mm thick Borofloat® 33 substrate. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. Our BD.2 coating offers high reflectance for near infrared diode laser applications. The BD-2 coating is extremely durable and will withstand repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
Borofloat® 33 Substrates
Borofloat 33 is a high quality borosilicate glass that offers low thermal expansion and high thermal shock resistance. Its material properties and moderate cost make Borofloat 33 an ideal substrate for general purpose applications. For more information, please see our Optical Materials technical note.
NIR Broadband Dielectric Coating
Our BD.2 coating offers high reflectance for near infrared diode laser applications. Reflectivity is greater than 99% for s-polarization and 97% for p-polarization from 700 – 950 nm at 0 – 45° angle of incidence. Greater than 80% average reflectivity at 632.8 nm is also provided to permit easy alignment using a HeNe laser.
Specifications
- Wavelength RegionNIR
- Wavelength Range700-950 nm
- Mirror ShapeRound
- Diameter30.0 mm
- Mirror SizeØ30.0 mm
- Thickness6.0 mm
- MaterialBorofloat® 33
- Coating TypeBroadband Dielectric
- Coating CodeBD.2
- Surface Quality15-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Substrate Number3MD20
- Angle of Incidence0-45°
- Clear Aperture≥central 80% of diameter
- Back SurfaceGround
- ReflectivityRs (avg)>99%, Rp (ave)>97% @ 700-950 nm,R(avg)>80% at 632.8 nm
- Damage Threshold1000 W/cm² CW, 4 J/cm², 10 ns pulses, 10 Hz, at 800 nm
- Diameter Tolerance+0/-0.13 mm
- Thickness Tolerance±0.25 mm
- Chamfers0.38–1.14 mm face width
- Chamfers Angle Tolerance45° ±15°
- Cleaning
Resources & Downloads
3D Product Models
Other
3MD20BD.2 RoHS Certificate(262.4 kB, PDF) 3MD20BD.2_ROHS2-2021.pdf(279.5 kB, PDF) BD.2 Raw Data.xlsx(82.6 kB, XLSX)
