Concave Metallic Mirror, 50.8 mm, 250 mm Focal Length, 480-20,000 nm

The 20DC500ER.2 protected silver concave mirror is used for focusing, collecting, and imaging with no chromatic aberration. This mirror can be used to manipulate laser beams or other broadband sources. This family of mirrors are available in three sizes, 12.7, 25.4, and 50.8 mm diameter, with radii of curvature from 25-2000 mm. This mirror is 50.8 mm in diameter, with an EFL of 250 mm and coated for a wavelength range of 480-20,000 nm.

Specifications

Technical Specs

Wavelength Range
480-20000 nm
Mirror Shape
Concave
Diameter
50.8 mm
Effective Focal Length (EFL)
250 mm
F/#
4.9
Radius of Curvature (R)
-500 mm
Material
Borofloat® 33
Coating Type
Protected Silver
Coating Code
ER.2
Angle of Incidence
0-15°
Reflectivity

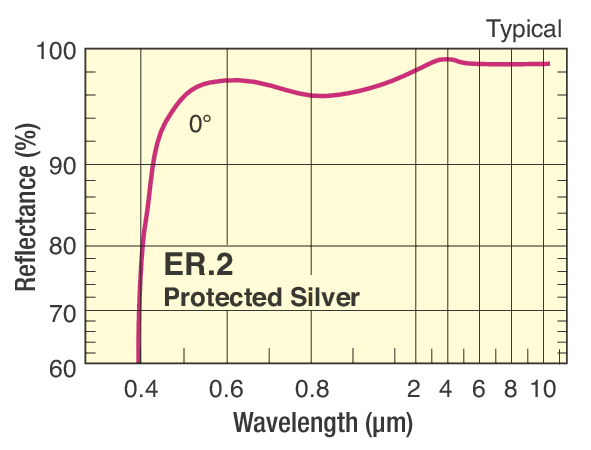

R_avg>96%, R_min>93% @ 480-1100 nm;R_avg>98.5%, R_min>97% @ 1.1-20 µm
Damage Threshold
1 J/cm² with 10 ns pulses at 1064 nm, 20Hz
Surface Quality
40-20 scratch-dig

Surface Flatness
λ/4 at 632.8 nm
Back Surface
Fine ground
Edge Thickness (Te)
9.65 mm
Center Thickness (Tc)
8.88 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Wedge
≤0.03 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Range
480-20000 nm
Mirror Shape
Concave
Diameter
50.8 mm
Effective Focal Length (EFL)
250 mm
F/#
4.9
Radius of Curvature (R)
-500 mm
Material
Borofloat® 33
Coating Type
Protected Silver
Coating Code
ER.2
Angle of Incidence
0-15°
Reflectivity
R_avg>96%, R_min>93% @ 480-1100 nm;R_avg>98.5%, R_min>97% @ 1.1-20 µm
Damage Threshold
1 J/cm² with 10 ns pulses at 1064 nm, 20Hz
Surface Quality
40-20 scratch-dig

Surface Flatness
λ/4 at 632.8 nm
Back Surface
Fine ground
Edge Thickness (Te)
9.65 mm
Center Thickness (Tc)
8.88 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Wedge
≤0.03 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

Other

20DC500ER.2 RoHS Certificate(263.8 kB, PDF)
20DC500ER.2_ROHS2-2021.pdf(280.8 kB, PDF)
ER.2 Raw Data.xlsx(205.4 kB, XLSX)

2D Product Drawings

20DC Series Drawing(101.5 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
20Z20ER.2Silver Mirror, Zerodur, 50.8 mm, λ/10, 480-20,000 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$378
10B20UF.25Low GDD Ultrafast Mirror, 45° AOI, 25.4 mm, 700-930 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$272
10D20ER.2Silver Mirror, Borofloat, 25.4 mm, λ/10, 480-20,000 nm	UNIVERSAL	5 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$106
10Q20BB.2Dielectric Mirror, Ultra-broadband, 25.4 mm, 99% 0-50°, 610-1130 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$493

Compatible

Description	Compatibility	Avail.	Price
U200-A3KMirror Mount, ULTIMA^®, Clear Edge, 2.0 in., 3 Locking Knobs	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$286
U200-G2KGimbal Mirror Mount, ULTIMA^®, Center, 2.0 in., 2 Locking 100-TPI Knobs	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$428

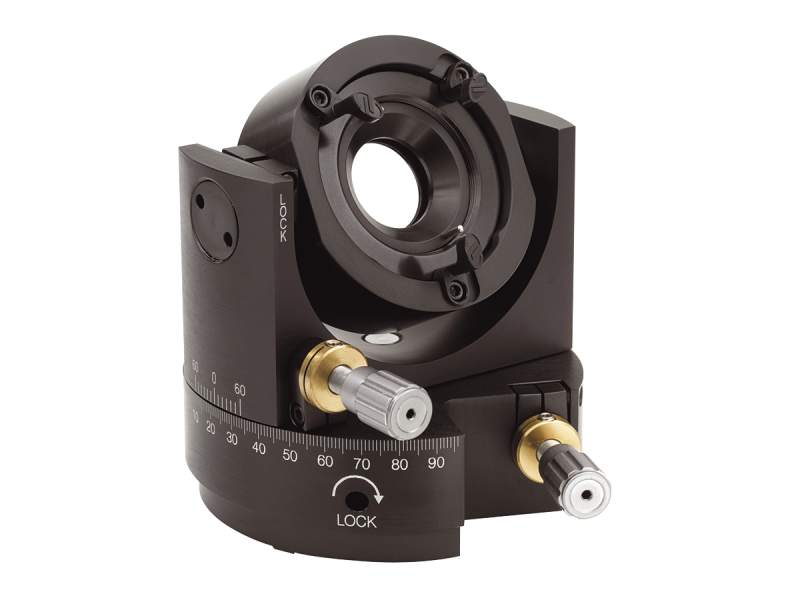

605-2Gimbal Optic Mount, Low-distortion Axial Clamping, 2.0 in., Incl.1.0 in. Adapter	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,101
