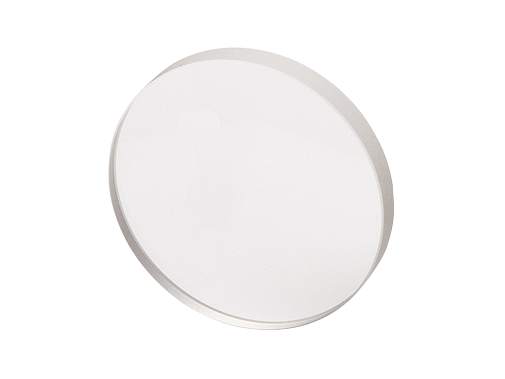

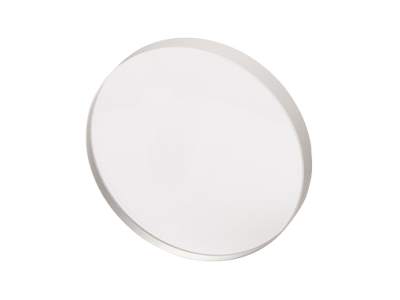

39323 Bi-Convex Focusing Lens

Bi-Convex Focusing Lens, 38.1 mm, Fused Silica, 51 mm EFL, Uncoated

Model: 39323

$410

Compare

Add to List

Product Series Overview

Uncoated UVFS Bi-Convex Lenses

The 39323 Focusing Lens is used with the 77259 Focusing Lens Assembly. It is a 1.5 inch (38.1 mm) diameter, UV Fused Silica, Bi-convex Lens with a 51 mm Focal Length. Bi-convex lenses are for imaging with little change in magnification. 190 to 2500 nm wavelength range.

Specifications

Technical Specs

Lens Shape

Bi-Convex
Diameter

38.1 mm
Lens Material

UV Fused Silica
Antireflection Coating

Uncoated
Surface Quality

60-40 scratch-dig

F/#

1.3
Effective Focal Length (EFL)

51.0 mm
Centration

3 arc min

Lens Shape

Bi-Convex
Diameter

38.1 mm
Lens Material

UV Fused Silica
Antireflection Coating

Uncoated
Surface Quality

60-40 scratch-dig

F/#

1.3
Effective Focal Length (EFL)

51.0 mm
Centration

3 arc min

Resources & Downloads

Other

39323 RoHS Certificate (264.9 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BI-CONVE-XLE-S (89.3 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77259 XYZ Focusing Lens Assembly, Req. 38.1 mm Plano-Convex or Bi-Convex Lens	UNIVERSAL		5 Weeks	$1,195

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		39223 Focusing Lens, 38.1 mm, N-BK7/A, Bi-Convex, 50 mm EFL, Uncoated	UNIVERSAL		In Stock	$200
		39225 Focusing Lens, 38.1 mm, N-BK7/A, Bi-Convex, 75 mm EFL, Uncoated	UNIVERSAL		In Stock	$125
