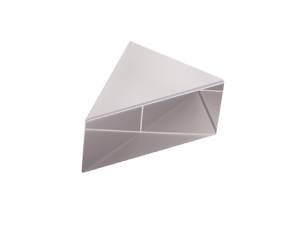

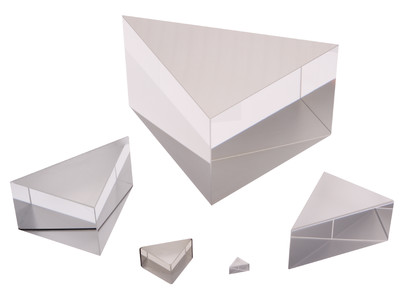

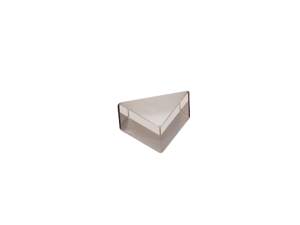

Economy N-BK7 Right-Angle Prisms

Specifications

Technical Specs

Wavelength Region
Visible and NIR
Material
N-BK7
Surface Quality
60-40 scratch-dig
Surface Flatness
λ/2 at 632.8 nm over the clear aperture
Clear Aperture
≥ central 85%
Damage Threshold
Aluminum hypotenuse: 100 W/cm² CW, 10 mJ/cm² with 10 nsec pulses, typical

Size Tolerance
+0/-0.25 mm
Chamfers
0.25-0.50 mm face width
Chamfers Angle Tolerance
45°
Cleaning
See How to Clean Optics

Wavelength Region
Visible and NIR
Material
N-BK7
Surface Quality
60-40 scratch-dig
Surface Flatness
λ/2 at 632.8 nm over the clear aperture
Clear Aperture
≥ central 85%
Damage Threshold
Aluminum hypotenuse: 100 W/cm² CW, 10 mJ/cm² with 10 nsec pulses, typical

Size Tolerance
+0/-0.25 mm
Chamfers
0.25-0.50 mm face width
Chamfers Angle Tolerance
45°
Cleaning
See How to Clean Optics

Resources & Downloads

Technical Notes

Optical Materials

Selection Guides

Valumax Optics Guide

Related Products

Prism Clamp

PT-1C can be used as a clamp on top of the platform mirror mount.
