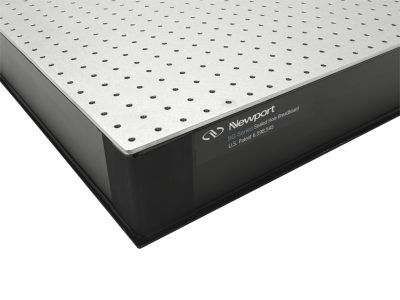

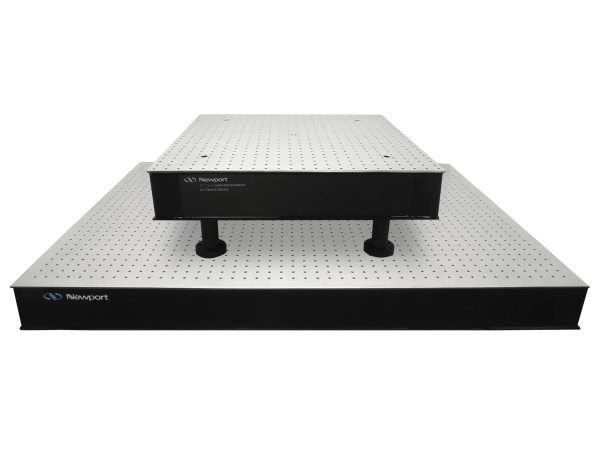

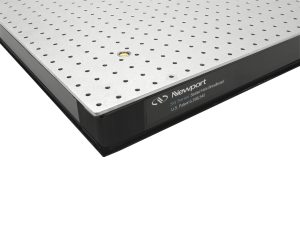

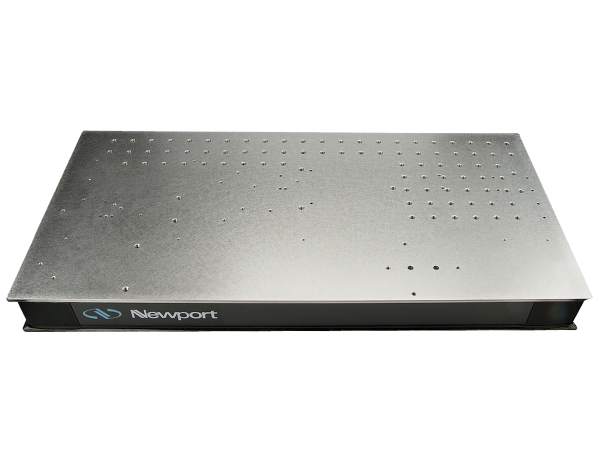

Honeycomb Core Optical Breadboard
Modal Damping
No

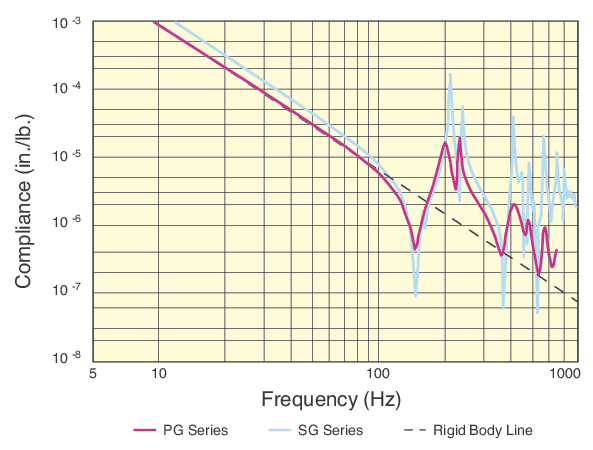

Broadband Damping
Constrained layer core, damped working surface, and composite edge finish
Working Surface
3/16 in. (4.8 mm) thick 430 ferromagnetic stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over any 2 ft. (600 mm) square
Bottom Skin Material
3.4 mm thick carbon steel

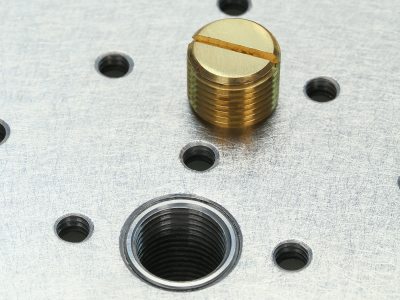

Microlocks
Yes
Mounting Holes
1/4-20
M6 (M- Versions)

Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Core Design
Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface

Type
Honeycomb Core Optical Breadboard
Modal Damping
No
Broadband Damping
Constrained layer core, damped working surface, and composite edge finish
Working Surface
3/16 in. (4.8 mm) thick 430 ferromagnetic stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over any 2 ft. (600 mm) square
Bottom Skin Material
3.4 mm thick carbon steel
Microlocks
Yes
Mounting Holes
1/4-20
M6 (M- Versions)

Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Core Design
Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface

Description	Compatibility	Price

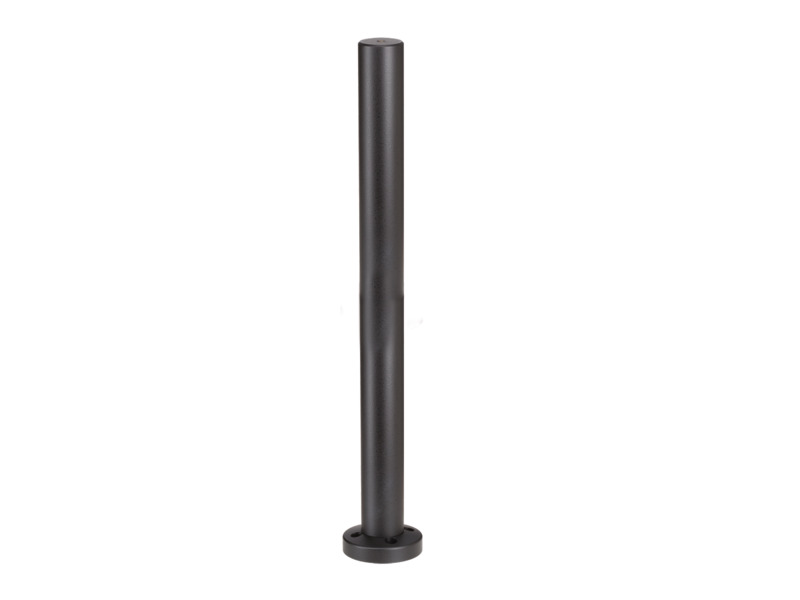

XP-5Support Rod, Microlock Breadboard, 5 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	$148

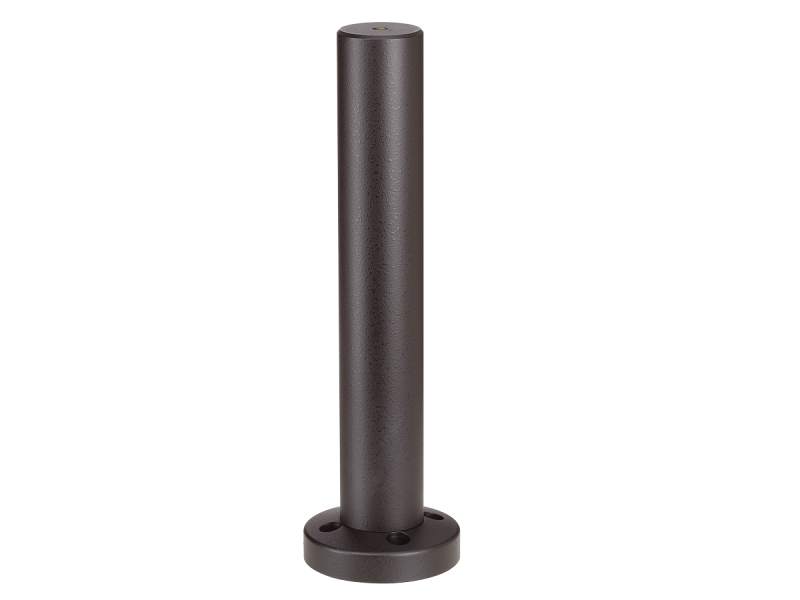

XP-10Support Rod, Microlock Breadboard, 10 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	$150

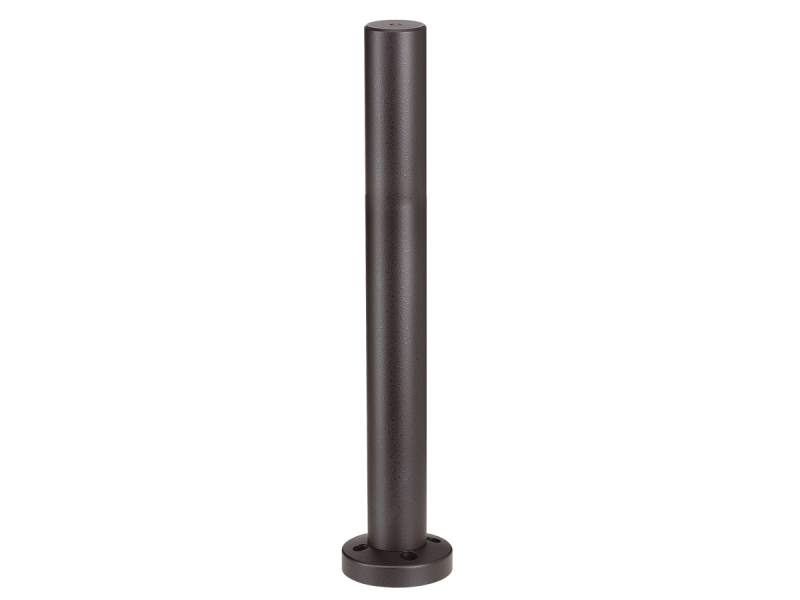

XP-15Support Rod, Microlock Breadboard, 15 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	$169

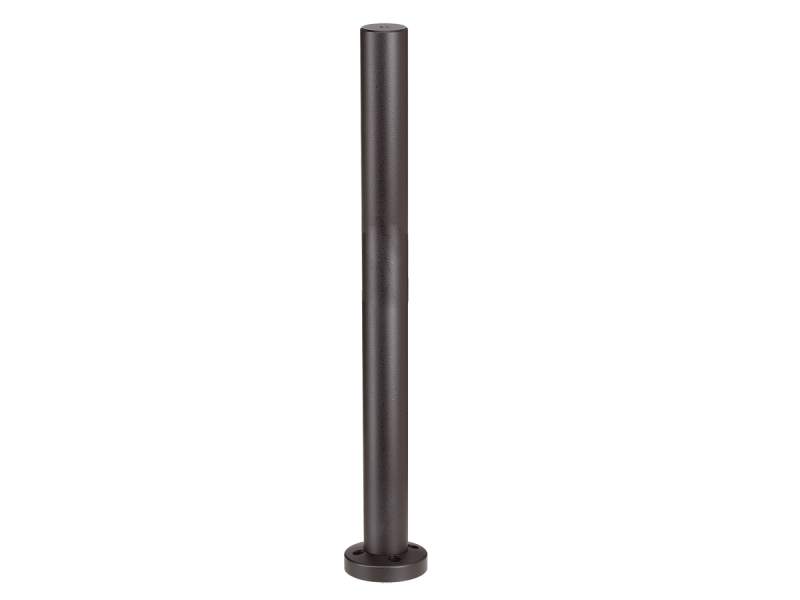

XP-20Support Rod, Microlock Breadboard, 20 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	$185
M-XP-5Support Rod, Microlock Breadboard, 127 mm Height, 39.7 mm Diameter, M6	METRIC	$148
M-XP-10Support Rod, Microlock Breadboard, 254 mm Height, 39.7 mm Diameter, M6	METRIC	$150
M-XP-15Support Rod, Microlock Breadboard, 381 mm Height, 39.7 mm Diameter, M6	METRIC	$169
M-XP-20Support Rod, Microlock Breadboard, 508 mm Height, 39.7 mm Diameter, M6	METRIC	$185

Model: sg-microlock-optical-breadboards
