Quartz Multiple-Order Quarter-Wave Plates
Model:
multiple-order-quarter-wave-plates
Request a Quote
Compare
Add to List
Product Series Overview
Specifications
Technical Specs
Material
Quartz
Construction
Single Plate
Retardation

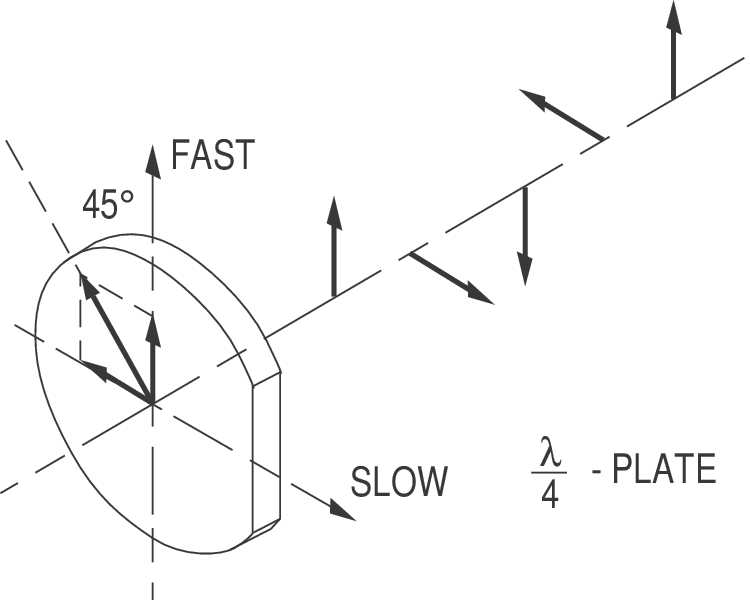

λ/4
Retardation Accuracy
±λ/300 at 20 ±1°C
Damage Threshold
2 MW/cm
2
CW
Pulse Damage Threshold
2 J/cm
2
with 10 nsec pulses
Wavefront Distortion
≤λ/10 at 632.8 nm over the full aperture
Surface Quality
10-5 scratch-dig
Wedge
<0.5 arc sec
Material
Quartz
Construction
Single Plate
Retardation
λ/4
Retardation Accuracy
±λ/300 at 20 ±1°C
Damage Threshold
2 MW/cm
2
CW
Pulse Damage Threshold
2 J/cm
2
with 10 nsec pulses
Wavefront Distortion
≤λ/10 at 632.8 nm over the full aperture
Surface Quality
10-5 scratch-dig
Wedge
<0.5 arc sec
