Type

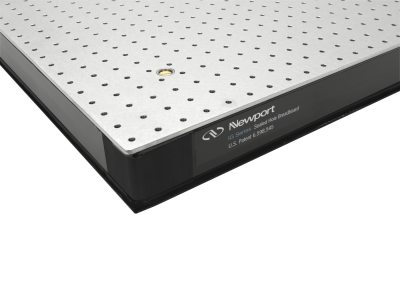

Honeycomb Core Optical Breadboard
Modal Damping
No
Broadband Damping
Constrained layer core, damped working surface, and composite edge finish
Thickness
2.3 in. (59 mm)
Working Surface
0.134 in. (3.4 mm) thick 430 ferromagnetic stainless steel
Surface Flatness
±0.006 in. (0.15 mm) over any 2 ft. (600 mm) square
Bottom Skin Material
3.4 mm thick carbon steel
Microlocks
Yes

Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Core Design
Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface

Type
Honeycomb Core Optical Breadboard
Modal Damping
No
Broadband Damping
Constrained layer core, damped working surface, and composite edge finish
Thickness
2.3 in. (59 mm)
Working Surface
0.134 in. (3.4 mm) thick 430 ferromagnetic stainless steel
Surface Flatness
±0.006 in. (0.15 mm) over any 2 ft. (600 mm) square
Bottom Skin Material
3.4 mm thick carbon steel
Microlocks
Yes

Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Core Design
Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface

Description	Compatibility	Avail.	Price
XP-5Support Rod, Microlock Breadboard, 5 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	In Stock	$148
XP-10Support Rod, Microlock Breadboard, 10 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	In Stock	$150
XP-15Support Rod, Microlock Breadboard, 15 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	In Stock	$169
XP-20Support Rod, Microlock Breadboard, 20 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	In Stock	$185
M-XP-5Support Rod, Microlock Breadboard, 127 mm Height, 39.7 mm Diameter, M6	METRIC	In Stock	$148
M-XP-10Support Rod, Microlock Breadboard, 254 mm Height, 39.7 mm Diameter, M6	METRIC	In Stock	$150
M-XP-15Support Rod, Microlock Breadboard, 381 mm Height, 39.7 mm Diameter, M6	METRIC	Contact Us	$169
M-XP-20Support Rod, Microlock Breadboard, 508 mm Height, 39.7 mm Diameter, M6	METRIC	In Stock	$185

Model: ig-microlock-optical-breadboards
