Vertical Stage, 9 mm Travel, Micro Step Drive, 300 N Load, 1/4-20

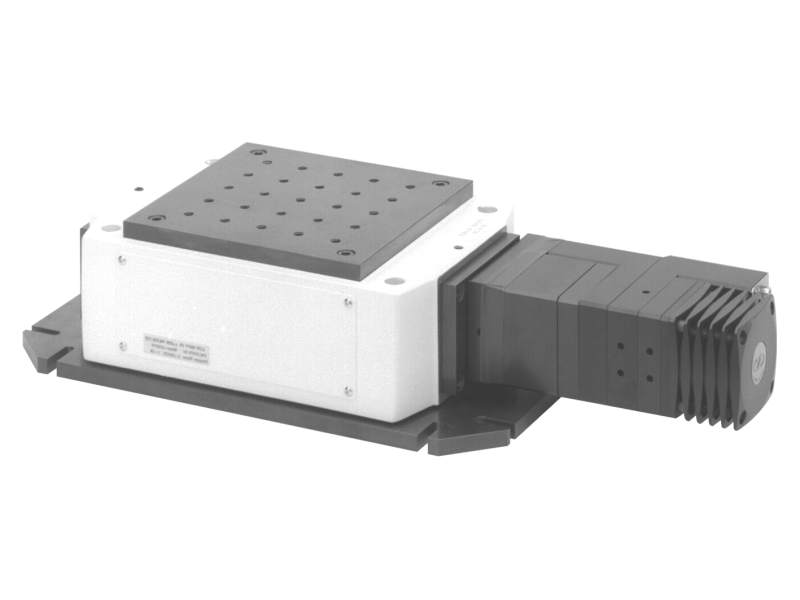

The UZM160PP.05 Vertical Stage is specifically designed for high load applications. It provides 9 mm vertical travel and can bear loads up to 300 N. When used for multi-axis assemblies, for instance in combination with our MTM series linear stages, it is recommended to mount the linear stages on top of the UZM160. The UZM160PE.05 comes with a full-step drive. In order to ensure consistent operation under high loads, all UZM160 versions are equipped with a 2,000 counts/revolution rotary encoder.
Specifications
- Travel Range9 mm
- Minimum Incremental Motion0.20 µm
- Maximum Speed1 mm/s

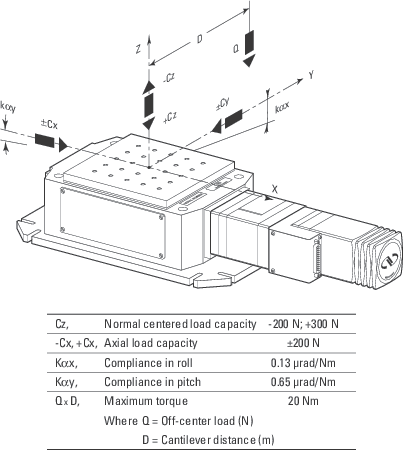

- Centered Load Capacity300 N
- Accuracy, Typical±4.0 µm
- Bi-directional Repeatability, Typical±2.75 µm
- Uni-directional Repeatability, Typical±0.25 µm
- Drive Screw Pitch4 mm
- Encoder Resolution0.05 µm
- Limit SwitchesMechanical
- OriginOptical, centered
- Origin Repeatability±0.25 µm
- ConnectorsDB25 Male
- Pitch, Typical±50 µrad
- Compliance in Pitch0.65 µrad/Nm
- Compliance in Roll0.13 µrad/Nm
- Yaw, Typical±100 µrad
- Cable Length3 m
- Thread Type1/4-20
- Weight22 kg
- MTBF20,000 h (25% load, 10% duty cycle)
- RoHSCompliant
Resources & Downloads
3D Product Models
2D Product Drawings
UZM160 Interfaces(381.3 kB, PDF) UZM160PP(419.6 kB, PDF)
Literature
UZ Data Sheet.pdf(2.2 MB, PDF)
Manuals
UZM Vertical Linear Stages User's Manual(1.4 MB, PDF)
