M-MK-2 Opto-Mechanical Set

The M-MK-2 Metric Components Set is a carefully thought out assortment of Newport’s most popular small optical positioning and fixturing components, selected for usefulness and versatility. When combined with any of Newport’s tables or breadboards, M-MK-2 allows you to construct precision opto-mechanical setups to perform a wide range of experimentation. These components are compatible with Newport’s extensive line of positioning and fixturing hardware, allowing a risk-free upgrade path as your needs expand. With the addition of a laser, simple optics and a breadboard or table, you can construct sophisticated devices like interferometers, collimators, telescopes and microscopes.

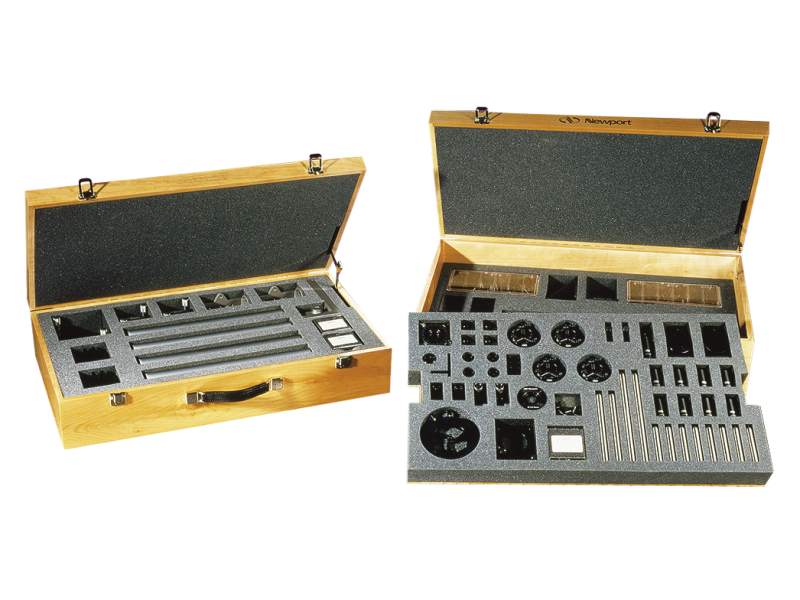

Large Hardwood Case
Qty	Part Number	Description
4	10D20ER.1	Aluminum Mirror, Borofloat, 25.4 mm, λ/10, 450-700 nm
1	15813-01	Hardwood Case
1	4829-02	Balldriver, 5 mm X 109 mm
4	AC-1A	Variable Size Lens Mount, 5.0-46.2 mm, Thumbscrew Support Arms
2	AJS100-1	Adjustment Screw, 100 TPI, 25.4 mm Travel, Small Knob, Side Lock
4	B-2SA	Double-Slotted Base, Stainless Steel, XY, 1.0 in. Range
2	BUP-2	Universal Base, Freely Rotating Disk, Eccentric Clearance Slot
2	CA-1	Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts
2	CA-2	Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts
4	COR-1	Center of Rotation Adaptor, P100-P Platform Mount
2	M-360-90	Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing
3	M-423	High-Performance Low-Profile Ball Bearing Linear Stage, 25.4 mm, M6
2	M-FC-1	Post Clamp, Optical Filter, 12.7 mm Optical Posts, M6 Thread
1	M-ID-1.0	Iris Diaphragm, 1.5 - 25 mm Aperture Range, M4 Thread, 14 Leaves
1	M-LCM-2	Lens Mount, Self-Centering, 3.2-60.3 mm Diameter Lenses
4	M-P100-P	Platform Optical Mount, Performa, 1.0 in., 2 Knob Adjustment, M4
1	M-SK-M4A	Black Oxide Screw Kit, M4, Assortment, Qty 249
1	M-SK-M6A	Black Oxide Screw Kit, M6, Assortment, Qty 261
8	M-SP-3	Optical Post, 76.2 mm Height, 12.7 mm Diameter, M4 and M6 Threads
2	M-SP-6	Optical Post, 152.4 mm Height, 12.7 mm Diameter, M4 and M6 Threads
2	M-SP-8	Optical Post, 203.2 mm Height, 12.7 mm Diameter, M4 and M6 Threads
8	M-VPH-2	Optical Post Holder, No Slip, 50.8 mm Height, 12.7 mm Posts, M6 Thread
1	M-VPT-3	Optical Post Holder, Translating, 76.2-92.5 mm, 12.7 mm Posts, M6
1	RSA-1TI	Solid Insert, RSP-1T Rotation Stage
1	RSP-1T	Optic Rotation Mount, 25.4 mm, Fine Adjust Knob, 8-32 and M4
1	SM-13	Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI
1	U200-A2K-NL	Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., 2 Non-Locking Knobs
4	UPA1	Mirror Adapter, Platform Mount, 25.4 mm Diameter
2	VLH-3A	V-Groove Lens Holder, 0.60 to 3.60 in. Diameter Lenses
Small Hardwood Case
Qty	Part Number	Description
1	16326-01	Hardwood Case
1	16636-01	Rod Wrench, Metric, For Mounting Standard Rod Models 40, 41, 70, & 71
2	20D20ER.2	Silver Mirror, Borofloat, 50.8 mm, λ/10, 480-20,000 nm
1	600A-2R	Precision Kinematic Optical Mount, 2.0 in. Diameter, SM-13 Micrometers
2	625-RC2	Mirror Mount, 1.5 in. Post Mounted, 2.0 in. Diameter, Knob Adjustment
1	M-300-P	Optical Post Platform, 38.1 mm Diameter Post, 3 Mounting Surfaces, M6
2	M-34	Rotatable Post Platform, Arbitrary Angle Mounting, 1.5 in. Post, M6
2	M-340-RC	Post Clamp, 38.1 mm Diameter Posts, M6 Thread
4	M-40	Optical Post, 355.6 mm Height, 38.1 Diameter, M6 Thread

Specifications

Technical Specs

Type

Standard Opto-mechanical Set
Thread Type

Metric

Type

Standard Opto-mechanical Set
Thread Type

Metric
