Cooler Controller, TEC

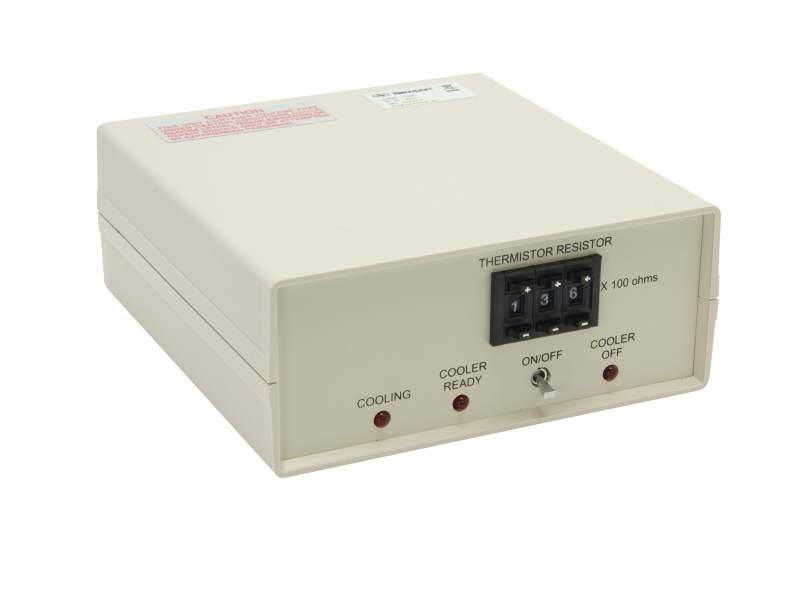

The 77055 TE Cooler Controller has been designed for easy setup and reliable, safe operation. The primary controls are a three digital thumb pot for a setting temperature (actually thermistor resistance) and a cooler on/off switch. LEDs indicate cooler on, cooling in process, and cooler ready. Remote cooler on/off control input (TTL) and cooler ready output (TTL) signals are provided. The current limit setting will prevent overdriving TE modules. The power supply is of a linear type to provide low noise power to the detector's TE modules and avoid becoming an additional noise source. The 77055's use is not limited to Newport's Oriel Detectors. The flexibility of this controller supports use in a wide range of temperature control situations. If your power requirements are 3.75 watts or less (1.25 A max) and the temperature sensing device is an NTC thermistor, the 77055 will provide stable and convenient operation.
Specifications
- TypeTE Controller
- Input ConnectorBNC
- Output Connector9 pin D-sub male for detector
- Accuracy± 200 Ω
- Power Requirements0.25 A @ 95-132 VAC, 50/60 Hz 0.125 A @ 190-264 VAC, 50/60 Hz
- Temperature Stability<0.1°C
- TE Current1.25 A
- TE Power3.75 W
- TE Voltage3.9 V
