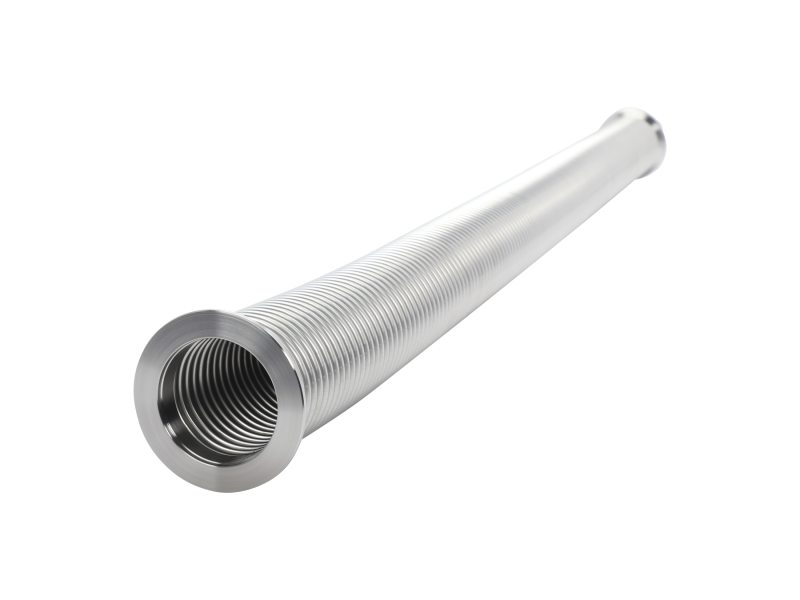

Metal Wall Vacuum Hose, NW50 ISO-KF, 1000 mm Length, 0.15 mm Hose Wall
The 100317446 Thin Metal Wall Vacuum Hose is 39.40 inch (1000 mm) in length with size NW50 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 3 1/4 inch static bend radius and can be compressed to a 26.3 in. (667 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Wall Thickness0.006 in. (0.15 mm)
- Static Bend Radius3.25 in.
- Spring Rate2.9 lb/in.
- Free Length1000 mm
- Compressed Length667 mm
- A1000 mm
- B667 mm
