Sorry, this product is no longer offered for sale. The recommended replacement product is 05D20BD.1.

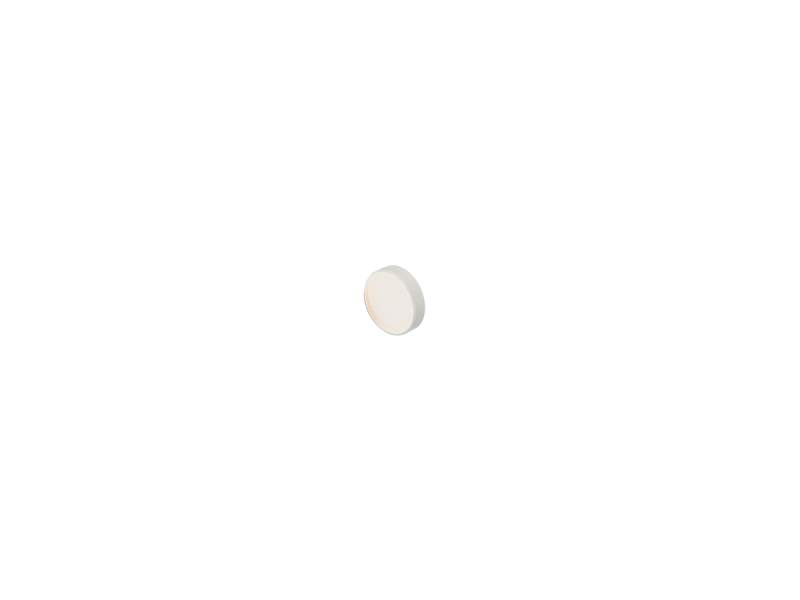

Laser Line Dielectric Mirror, 12.7 mm, λ/10, 325 nm
The 05D20RM.2 Laser Line Dielectric mirror is a highly efficient reflector optimized for the 325 nm wavelength. This 1/2 inch (12.7 mm) diameter mirror is made from a 3.1 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The RM.2 coating is designed for use with HeCd lasers and has a center wavelength of 325 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
Specifications
Wavelength Region
UV
Wavelength Range
325 nm
Mirror Shape
Round
Diameter
12.7 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
RM.2

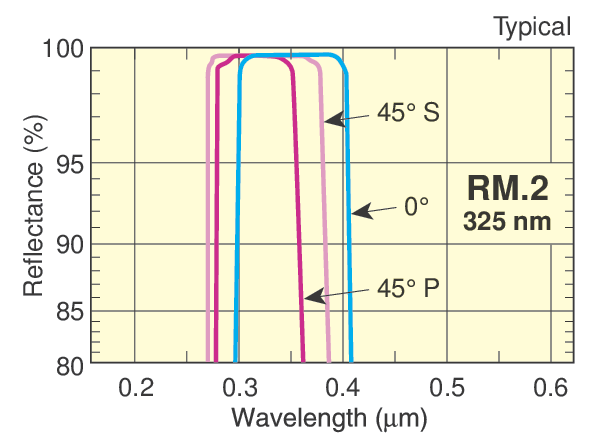

Reflectivity
Rs, Rp>99% @ 325 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
05D20
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
3.1 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
