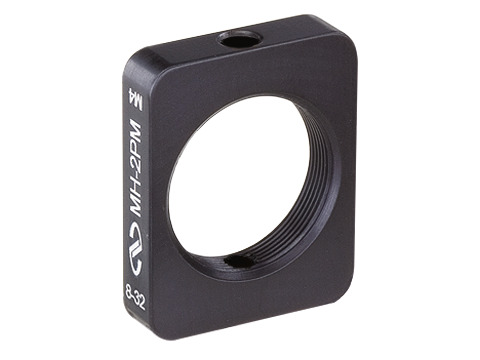

Microscope Objective Holder, RMS-Threaded, 0.625 in. Axis Height

Model: MH-2PM

$48

In Stock

Compare

Add to List

Product Series Overview

Microscope Objective Lens Mounts And Adapters

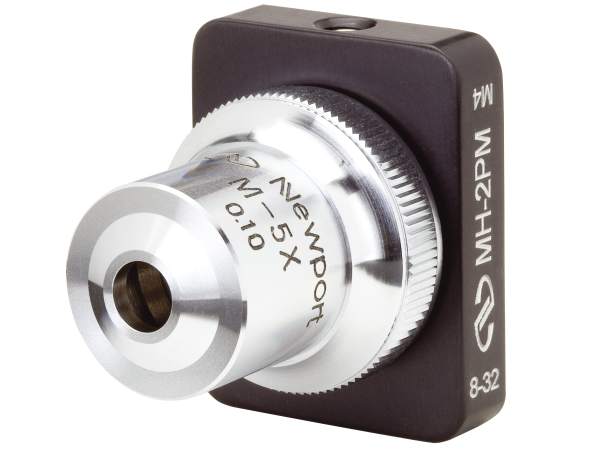

The MH-2PM Fixed Position Microscope Objective Mount accommodates microscope objectives with the standard 0.800-36 RMS thread such as our M or L Series. 8-32 and M4 threads provide for easy post mounting as well as compatibility with our MRL Series mini rails and MT Series compact linear stages.

Specifications

Technical Specs

Type

Objective Lens Mount
Optical Axis Height

15.9 mm
Adjustments

Fixed

Thread Type

8-32 and M4

Type

Objective Lens Mount
Optical Axis Height

15.9 mm
Adjustments

Fixed

Thread Type

8-32 and M4

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MH-2PM-249 (135.7 kB, PDF)

Other

MH-2PM RoHS Certificate (277.7 kB, PDF)
MH-2PM_RoHS2021.pdf (682.8 kB, PDF)
