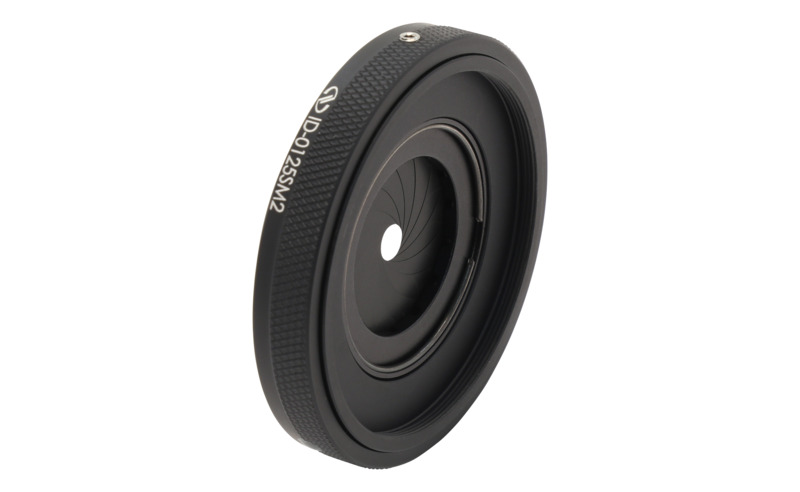

ID-0125SM2 SM2 Threaded Iris Diaphragm

SM2 Threaded Iris Diaphragm, Ring-Actuated, 1-25 mm Aperture Range

Model: ID-0125SM2

$105

In Stock

Compare

Add to List

Product Series Overview

Ring Actuated Threaded Iris Diaphragms

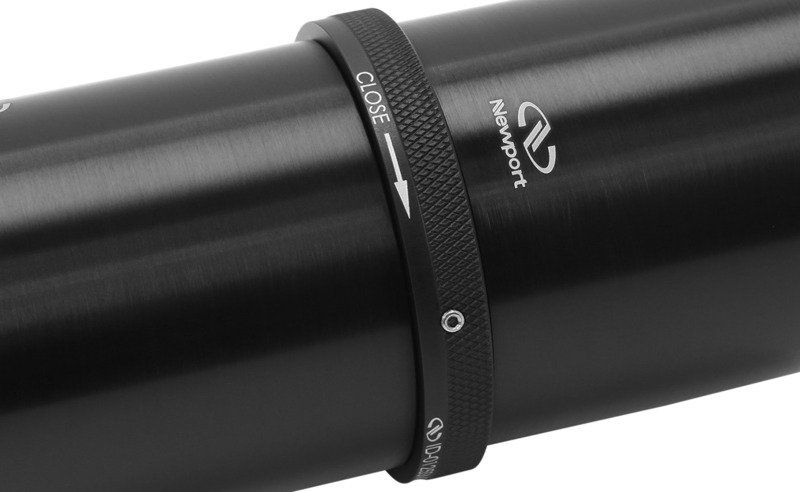

The ID-0125SM2 iris diaphragm is SM2-threaded for use with opto-mechnical components with 2.035-40 thread. The ring-actuated iris diaphragm is low profile with no lever sticking up that could lead to unintended changes. A setscew on the side of housing can further lock the iris in place after designed opening is achieved.

Specifications

Technical Specs

Type

Ring-Actuated Iris Diaphragm
Minimum Aperture

1.0 mm
Maximum Aperture

25 mm
Thread Type

2.035-40

Graduations

No
Number of Leaves

14

Type

Ring-Actuated Iris Diaphragm
Minimum Aperture

1.0 mm
Maximum Aperture

25 mm
Thread Type

2.035-40

Graduations

No
Number of Leaves

14
