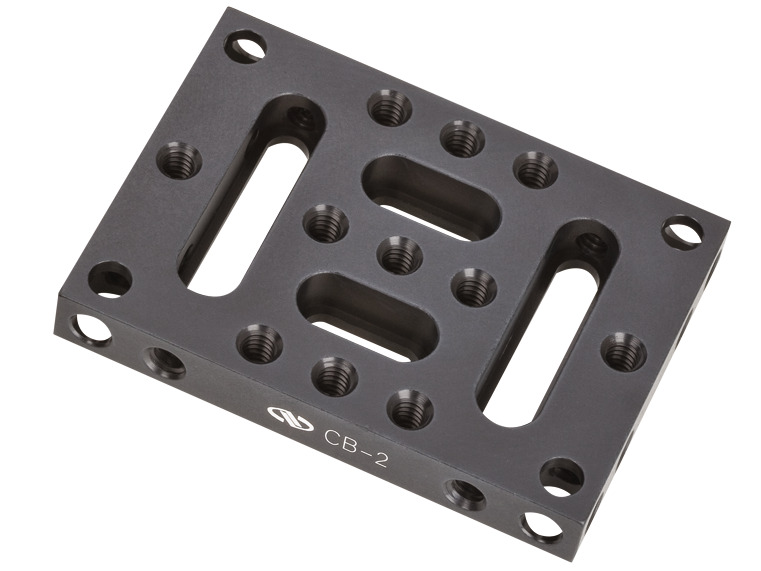

Construction Plates, 2.5 x 3.5 in., 2 pieces, 1/4-20

Model: CB-2

$133

In Stock

Compare

Add to List

Product Series Overview

Modular Construction Bases

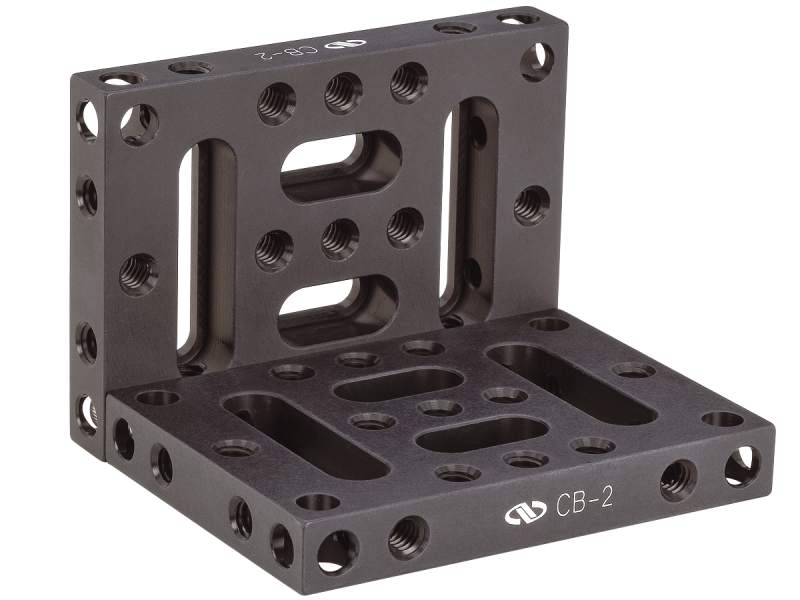

The CB-2 Construction Base is a two-piece design that can be used as a bracket or a base. The base has plenty of tapped holes on all the surfaces as well as clearance holes and slots for 1/4-20 screws. Combine all three elements to construct rigid optical assemblies quickly and easily.

Specifications

Technical Specs

Type

Construction Base
Thread Type

1/4-20

Type

Construction Base
Thread Type

1/4-20

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CB-2 DWG-S (227 kB, PDF)

Other

CB-2 RoHS Certificate (278.6 kB, PDF)
CB-2_RoHS2021.pdf (681.8 kB, PDF)
