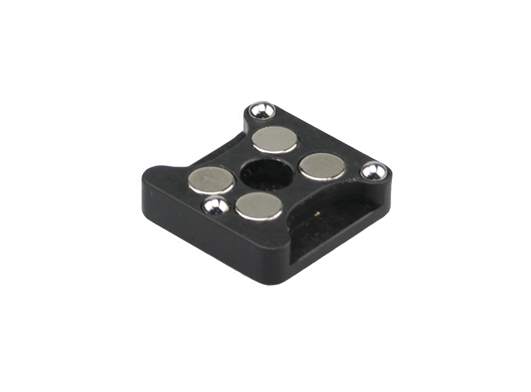

Bottom Plate, For (M-)BK-1A Kinematic Base

Bottom Plate, For (M-)BK-1A Kinematic Base

Model: BK-1A-B

$73

In Stock

Compare

Add to List

Product Series Overview

Kinematic Bases

The BK-1A-B Bottom Plate is a spare bottom plate for (M-)BK-1A Kinematic Bases.

Specifications

Technical Specs

Type

Kinematic Base Bottom Plate
Base size

25 x 25 mm
Thread Type

8-32 (M4) CLR

Material

Aluminum

Type

Kinematic Base Bottom Plate
Base size

25 x 25 mm
Thread Type

8-32 (M4) CLR

Material

Aluminum

Resources & Downloads

Other

BK-1A-B RoHS Certificate (277.8 kB, PDF)
BK-1A-B_RoHS2021.pdf (680.4 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BK-1-S (150.2 kB, PDF)
