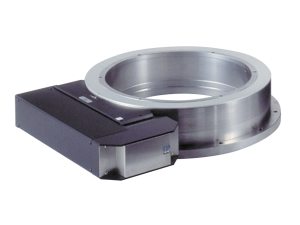

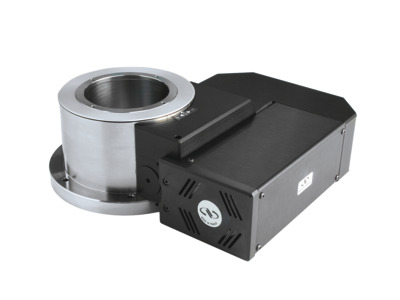

RV Folded Stepper Motor Rotation Stages

Specifications

Technical Specs

Angular Range
360°
Minimum Incremental Motion
1.0 mdeg
Drive Mechanism
Ground worm gear with self compensating preload
Bearings
Double row ball bearings
Worm Gear Ratio
1:90
Origin
Optical

Limit Switches
Optical, at ± 170°, can be disabled for continuous rotation
Feedback
Worm-mounted rotary encoder
Base Material
Stainless Steel
Cable Length
3 m

Angular Range
360°
Minimum Incremental Motion
1.0 mdeg
Drive Mechanism
Ground worm gear with self compensating preload
Bearings
Double row ball bearings
Worm Gear Ratio
1:90
Origin
Optical

Limit Switches
Optical, at ± 170°, can be disabled for continuous rotation
Feedback
Worm-mounted rotary encoder
Base Material
Stainless Steel
Cable Length
3 m
