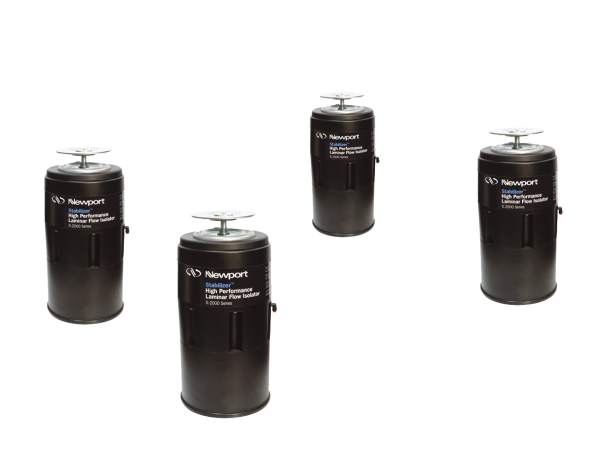

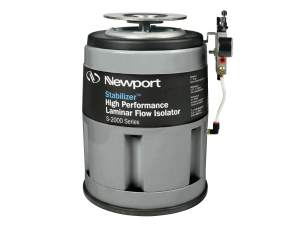

S-2000AN Non-Magnetic Pneumatic Vibration Isolators

Specifications

Technical Specs

Load Capacity per Isolator
2000 lb (900 kg)
Type
Non-Magnetic Pneumatic Vibration Isolator
Tie Bar Flange
No
Float Height Indicator
Yes
Self Centering
Yes
Height Adjustment
+1.09/-0.25 in. (+27.7/-6.4 mm)
Horizontal Isolation, Resonance
1.5 Hz
Horizontal Amplification at Resonance
9 dB

Horizontal Isolation, 5 Hz
85%
Horizontal Isolation, 10 Hz
95%
Vertical Isolation, Resonance
1 Hz
Vertical Amplification at Resonance
10 dB
Vertical Isolation, 5 Hz
94%
Vertical Isolation, 10 Hz
98%

Load Capacity per Isolator
2000 lb (900 kg)
Type
Non-Magnetic Pneumatic Vibration Isolator
Tie Bar Flange
No
Float Height Indicator
Yes
Self Centering
Yes
Height Adjustment
+1.09/-0.25 in. (+27.7/-6.4 mm)
Horizontal Isolation, Resonance
1.5 Hz
Horizontal Amplification at Resonance
9 dB

Horizontal Isolation, 5 Hz
85%
Horizontal Isolation, 10 Hz
95%
Vertical Isolation, Resonance
1 Hz
Vertical Amplification at Resonance
10 dB
Vertical Isolation, 5 Hz
94%
Vertical Isolation, 10 Hz
98%

Resources & Downloads

Technical Notes

Instability Oscillation of High CG Table Systems

Manuals

S-2000 Vibration Isolators and Optical Table Installation Manual(1.7 MB, PDF)
S2000 Installation Quick Start Guide(PDF)
