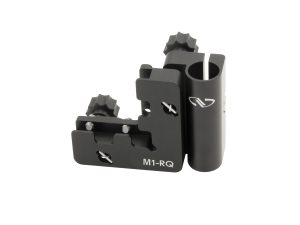

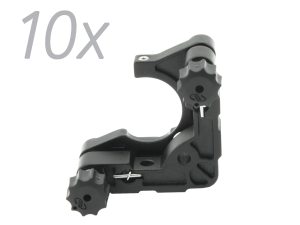

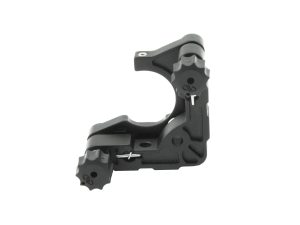

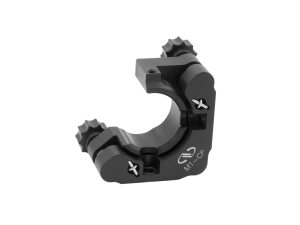

M Series Clear Edge Mirror Mounts

Specifications

Technical Specs

Mechanism
Kinematic
Number of Actuators
2
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
100 TPI

Adjustments
θx, θy
Angular Range
±4°
Thread Type
8-32 (M4) CLR

Mechanism
Kinematic
Number of Actuators
2
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
100 TPI

Adjustments
θx, θy
Angular Range
±4°
Thread Type
8-32 (M4) CLR
