Fixed Periscopes
Fixed Periscopes

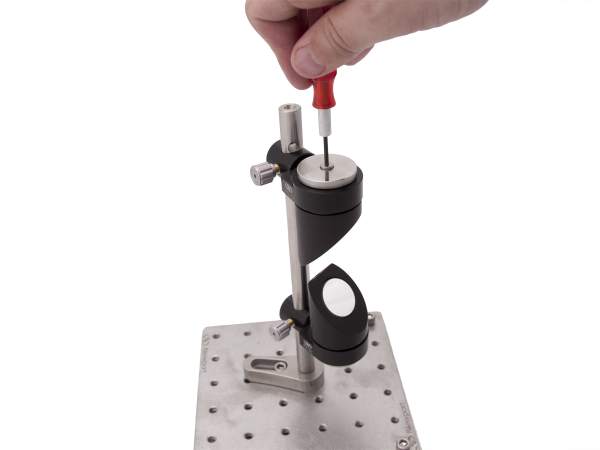

Fixed periscopes provide vertical height adjustment along its solid stainless steel pedestal and 360° manual steering of incident beams. It's base is also magnetic to easily secure rough alignments in place quickly. Height adjustment can be made without tools in a simple, low-cost design.
- Simple low-cost, fixed periscope on 0.5 in. optical post
- 54 to 168 mm optical axis height adjustment
- Captive 45 degree mirror holders
- Strong magnetic pedestal base for safe placement prior to clamping See All Features
Features

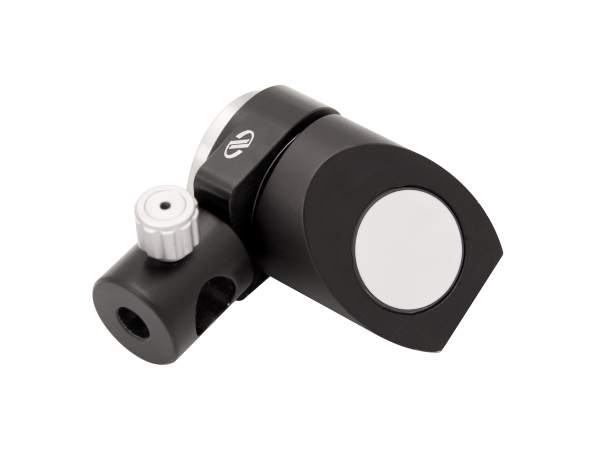

Easy to Align Captive Held Mirror Mounts
Captive 45-degree mirror holders will not fall out while being rotated
Designed For 0.5 in. Optical Posts

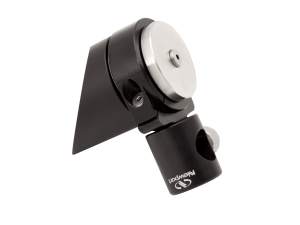

The BSD-F mirror mounts can easily be mounted to industry standard 0.5 inch optical mounting posts.

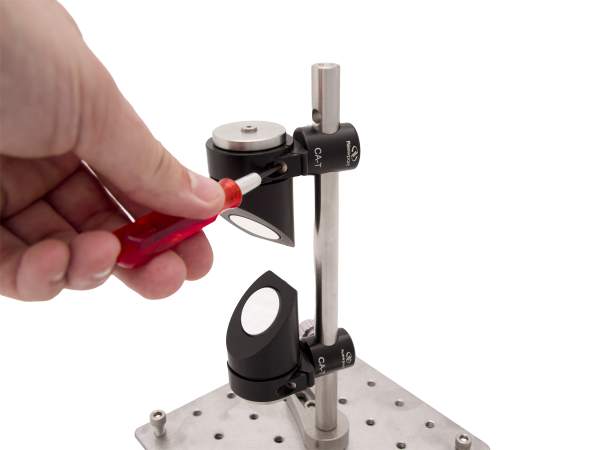

Hex Drive for Adjustment and Lock
The mirror mounts lock in place using same hex drive used for adjustment.
