Optical Breadboard Microlock Tools and Accessories
Optical Breadboard Microlock Tools and Accessories

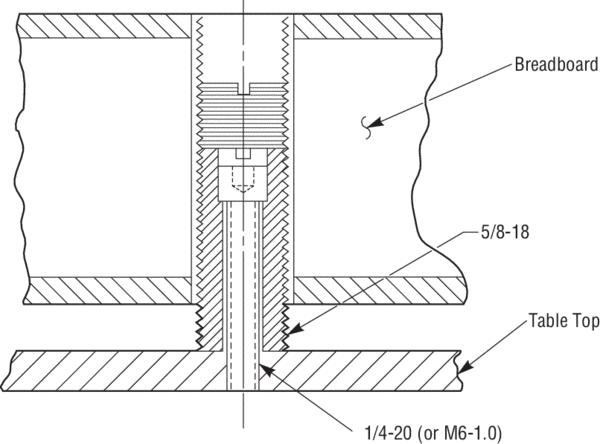

Microlocks can be used to mount breadboards on an optical table or directly onto any vertical or horizontal structure. They are normally positioned 1/6 of the length/width dimension in from the edge of the breadboard, with an additional Microlock in the center of the boards with larger sizes. With metric mounting holes, the Microlock positions are adjusted slightly to place them directly between the ranks of mounting holes. This provides automatic alignment of the Microlocks with the mounting holes in the supporting table when both the breadboard and the table have the same type mounting holes.
- Adjustment Tool
- Microlock Sleeves
- Microlock Inserts
- Microlock Caps See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

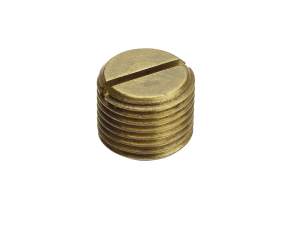

 | 4646Microlock Insert, Spare | |||||
 | 4647Microlock Cap, Spare | |||||

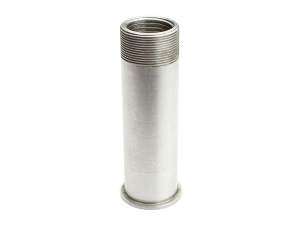

 | 6749-1Microlock Sleeve, 2 in. Thick Optical Breadboards | |||||
| 6749-5Microlock Sleeve, 4 in. Thick Optical Breadboards | |||||

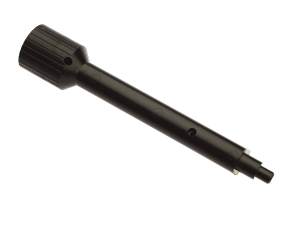

 | 8673Adjustment Tool, Microlock | |||||

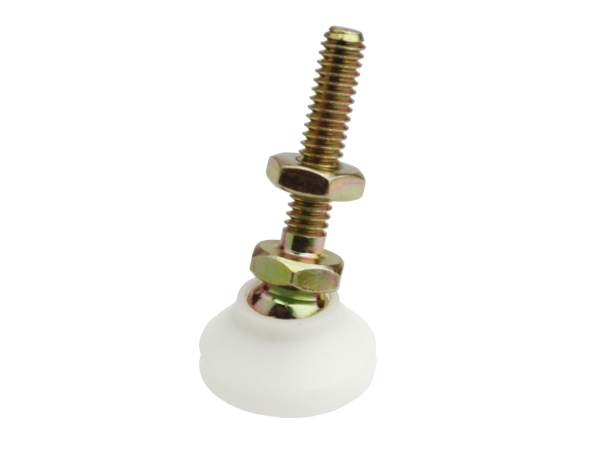

 | Microlock-FTLeveling Foot, 1/4-20 Thread, Microlock |
Features
Microlock Positions Aligned With Table Hole Patterns
Microlocks are normally positioned 1/6 of the length/width dimension in from the edge of the breadboard, with an additional Microlock in the center of the boards with larger sizes. With metric mounting holes, the Microlock positions are adjusted slightly to place them directly between the ranks of mounting holes. This provides automatic alignment of the Microlocks with the mounting holes in the supporting table when both the breadboard and the table have the same type mounting holes.

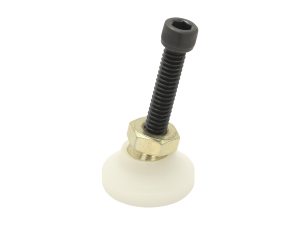

Free Standing Mounting Feet
Microlock mounting feet are available for free-standing applications. These high-load-capacity feet insert into the Microlocks and prevent the breadboard from scratching or marring the support surface.
