Sorry, this product is no longer offered for sale. It was discontinued on May 19, 2025The recommended replacement product is PS-4E.

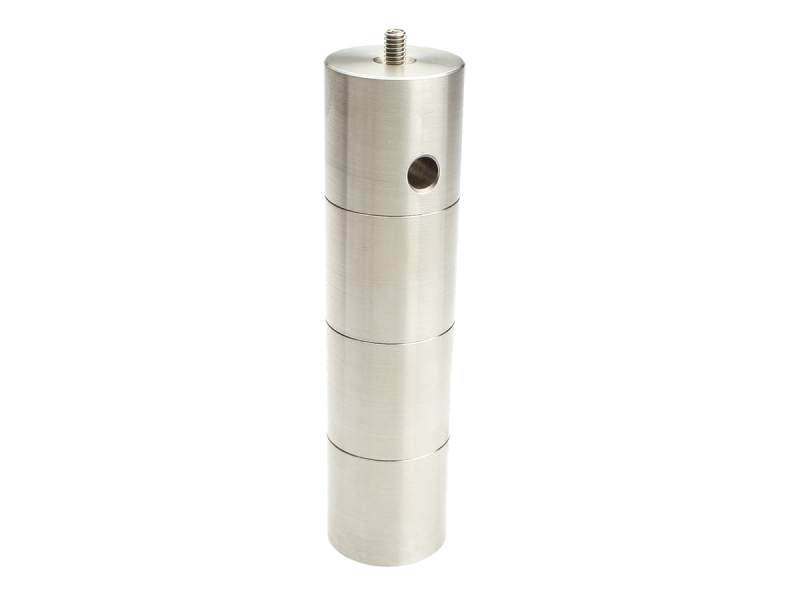

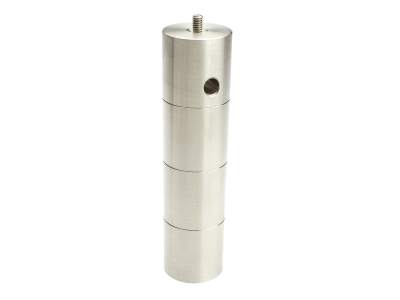

Optical Post, 4.0 in. Height, 1 in. Diameter, 8-32 Thread, LaserClean

The PS-4E-LC Precision Ground Stainless Steel Optical Pedestal Extention is 1.0 in. diameter with a 4.0 in. height and 8-32 threads at each end. Optical pedestal extensions and spacers allow for many in between optical pedestal mounting heights. One mounting screw is included and pre-installed.

Specifications

Technical Specs

Type
LaserClean Pedestal Extension
Height
101.6 mm
Thread Type
8-32
Material
Stainless Steel

Diameter
25.4 mm

Type
LaserClean Pedestal Extension
Height
101.6 mm
Thread Type
8-32
Material
Stainless Steel

Diameter
25.4 mm

Resources & Downloads

Other

PS-4E-LC RoHS Certificate(280.2 kB, PDF)
PS-4E-LC_RoHS2021.pdf(686.9 kB, PDF)

2D Product Drawings

PS-E Posts Drawing(186.7 kB, PDF)
