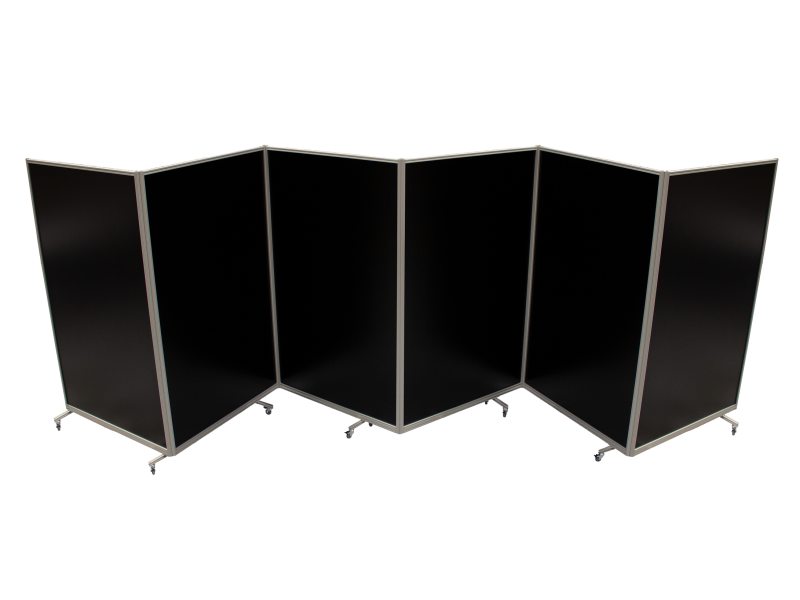

Portable Laser Safety Barrier, 6 Panels

Laser Safety Barriers

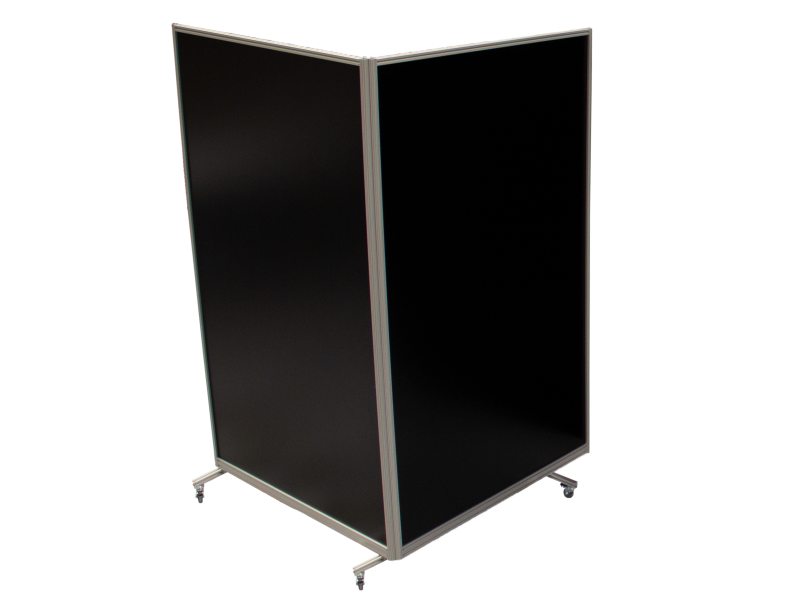

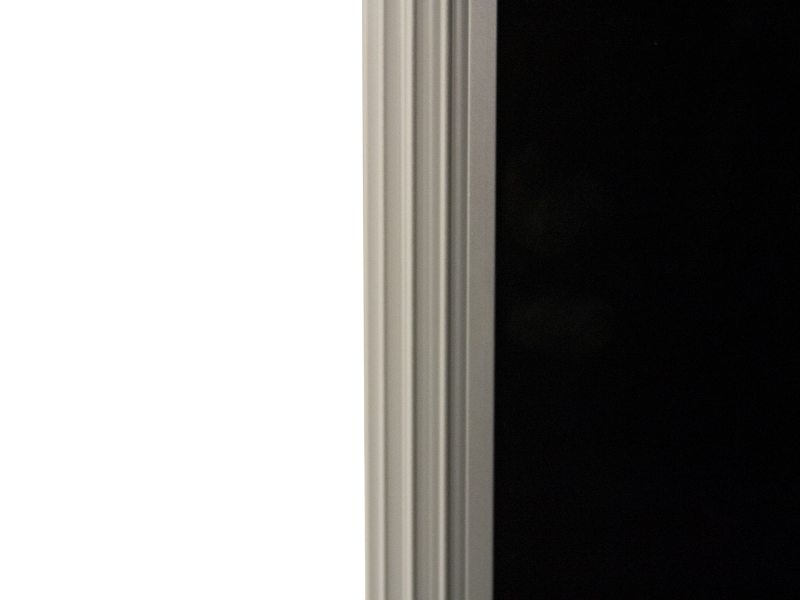

Newport's 6-Panel Portable Laser Safety Barrier is free-standing and foldable for ease of use and storage. Laser rated to 2500 W/cm² for 100 seconds, these panels are constructed with heavy duty extruded aluminum frame with special coating that helps block and absorb scattered and direct laser radiation. Its lightweight design comes with wheels for maximum mobility. The 360° hinge design ensures that the panels are light tight in any position. It is a great alternative to laser curtains.

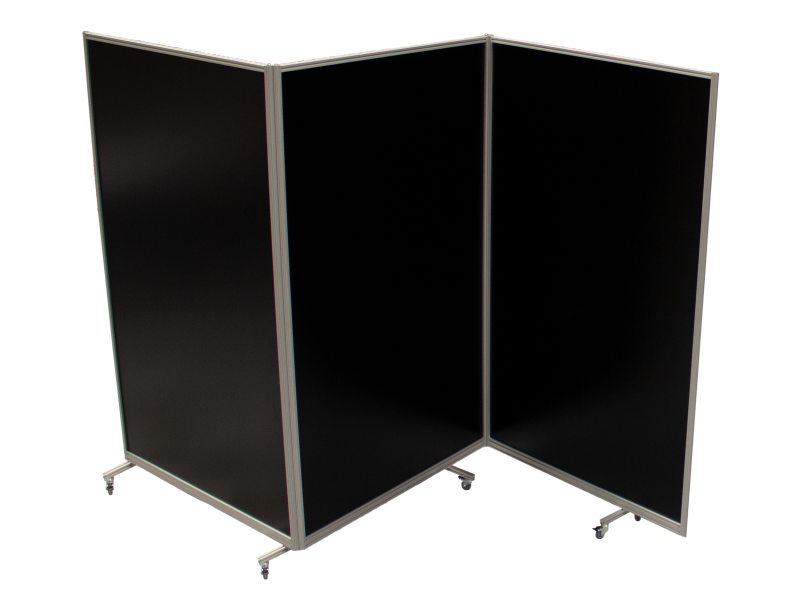

Versatile Laser Safety Barriers

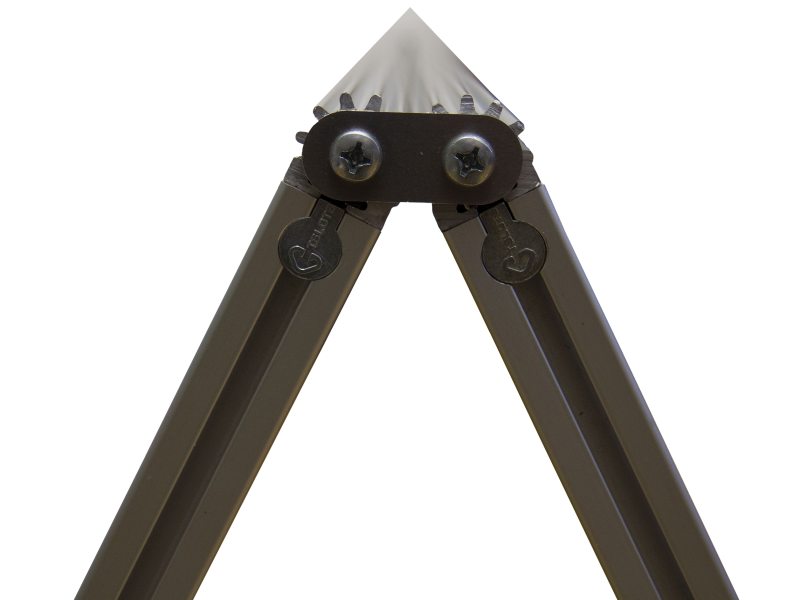

Hinges block the light in any position

The foldable laser safety panel systems are ideal for applications that require mobile and flexible convergence. The unique 360° hinges ensure that the panels are light tight in any position according to your needs.

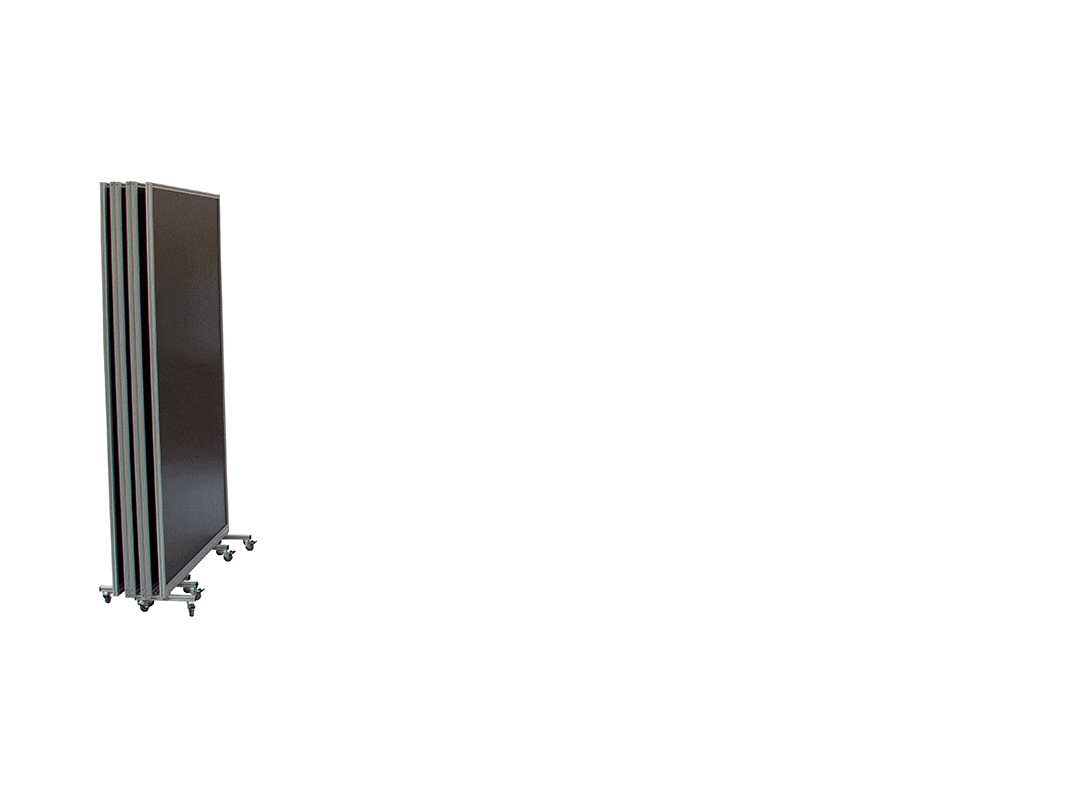

Fold And Move With Ease

The laser safety barriers are foldable for ease of use and storage. They are fully assembled with wheels to move to different locations with ease.

Specifications

Technical Specs

Material
Two layers of aluminum bonded with corrugated polyallomer core
Height
83 in.
Width
295 in.
Thickness
0.232 in.

Maximum Irradiance
1,000 W/cm² @ 315-1050 nm
2,500 W/cm² @ >1050-1400 nm
10,000 W/cm² @ 10600 nm
(Tested for 100 sec at a 1 mm beam diameter)

Material
Two layers of aluminum bonded with corrugated polyallomer core
Height
83 in.
Width
295 in.
Thickness
0.232 in.

Maximum Irradiance
1,000 W/cm² @ 315-1050 nm
2,500 W/cm² @ >1050-1400 nm
10,000 W/cm² @ 10600 nm
(Tested for 100 sec at a 1 mm beam diameter)

Resources & Downloads

2D Product Drawings

Barrier_foldable_drawing.pdf(174.2 kB, PDF)

Literature

PLSP Series Laser Safety Barriers(0, PDF)
