Sorry, this product is no longer offered for sale.

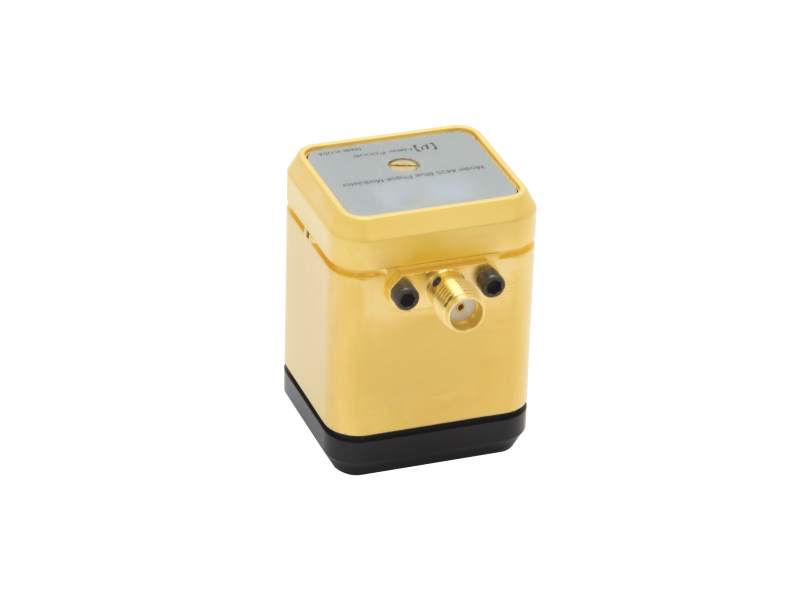

Resonant Phase Modulator, 2.5-4.6 GHz, 360-500 nm, 8-32 and M4
The 4435-02 Resonant Phase Modulator is for 360 to 500 nm UV-Visible applications requiring resonant frequencies from 2.5 to 4.6 GHz. It consists of an electro-optic crystal in a resonant microwave cavity to ensure efficient phase modulation and low drive-voltage requirements. A tuning slug allows manual adjustment of the resonant frequency over a 100 MHz range. 8-32 and M4 mounting holes.
Specifications
- TypeResonant Phase Modulator
- Wavelength Range360-500 nm
- MaterialMgO:LiNbO3
- Operating Frequency2.5 - 4.6 GHz
- ApertureØ1 mm
- VSWR<1.5
- Maximum Input Power0.1 W/mm2 @ 364 nm
- Maximum RF Power4 W
- Maximum V16.4 - 28.8 V @ 364 nm
- RF ConnectorSMA
- Input Impedance50 Ω
- RF Bandwidth0.5% freq.
- Modulation Depth0.11 - 0.19 rad/V @ 364 nm
