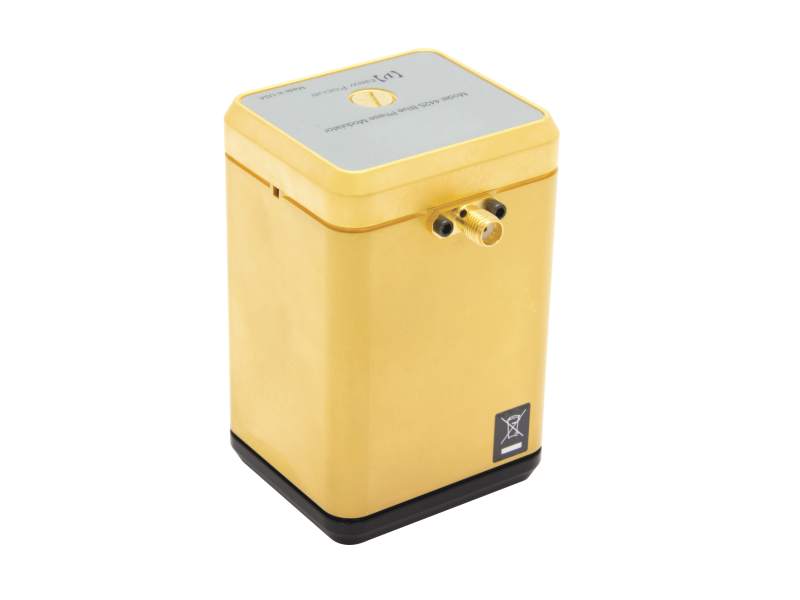

Resonant Phase Modulator, 0.25-0.75 GHz, 1000-1600 nm, 8-32 and M4
The 4423-01 Resonant Phase Modulator is for 1000 to 1600 nm near-IR applications requiring resonant frequencies from 0.25 to 0.75 GHz. It consists of an electro-optic crystal in a resonant microwave cavity to ensure efficient phase modulation and low drive-voltage requirements. A tuning slug allows manual adjustment of the resonant frequency over a 100 MHz range. 8-32 and M4 mounting holes.
Specifications
- TypeResonant Phase Modulator
- Wavelength Range900-1600 nm
- MaterialMgO:LiNbO3
- Operating Frequency0.25 - 0.75 GHz
- ApertureØ2 mm
- VSWR<1.5
- Maximum Input Power4 W/mm2 @ 1064 nm
- Maximum RF Power4 W
- Maximum V31.0 - 63.0 V @ 1000 nm
- RF ConnectorSMA
- Input Impedance50 Ω
- RF Bandwidth0.5% freq.
- Modulation Depth0.05 - 0.10 rad/V @ 1000 nm
