This product is only available on www.mks.com

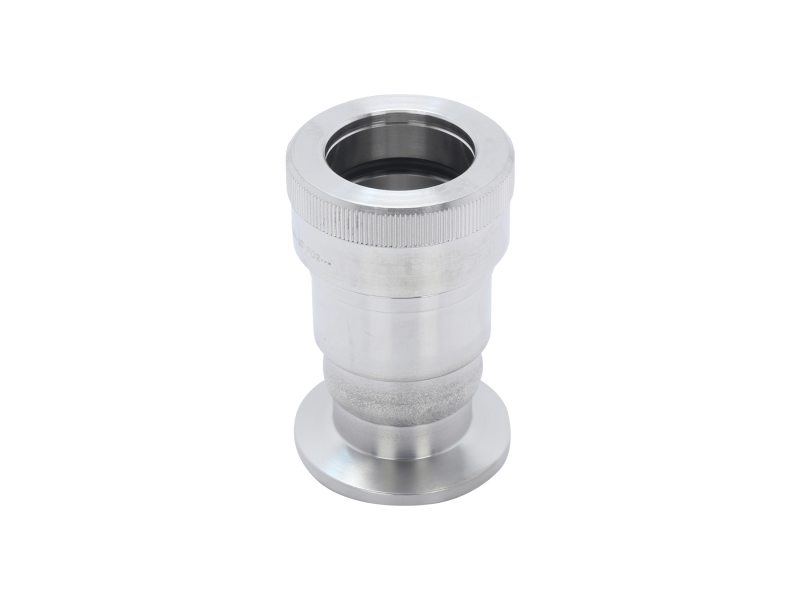

ISO-KF Flange Adapter, NW25 to 1.0 inch O.D. Pipe Compression Fitting
The 100316923 ISO-KF Flange Adapter is used to convert a NW25 size ISO-KF vacuum flange to a 1 inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Specifications
- Component TypePipe Compression Fitting Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Seal MaterialViton
- Flange TypeISO-KF
- Flange SizeNW25
- Tube OD1.0 in.
- Length61 mm
- Inner Diameter22 mm
- A22 mm
- B61 mm
- C24 mm
