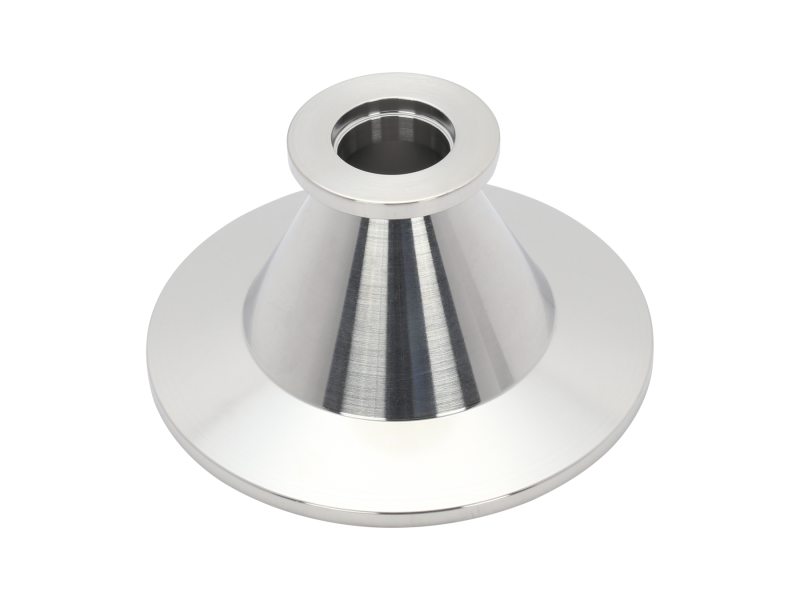

Conical Flange Reducer, ISO-KF Size NW50 to NW16, 304 Stainless Steel

The 100313713 Conical Flange Reducer uses a high conductance conical profile to transition from a size NW50 ISO-KF flange to a size NW16 ISO-KF flange and is made of 304 stainless steel. Series 31 ISO-KF vacuum components are designed for use at subatmospheric pressure and use standard interface dimensions defined by the International Standards Organization (ISO) allowing them to be interchangeable with other ISO-KF compliant components. Series 31 components can be used as modular building blocks to create vacuum piping systems. IS-KF flanges are "sexless" with a symmetrical seal so that so that components are rotatable. ISO-KF vacuum flanges are joined by inserting a centering ring between the two flange faces, and securing them with a flange encompassing clamp.
