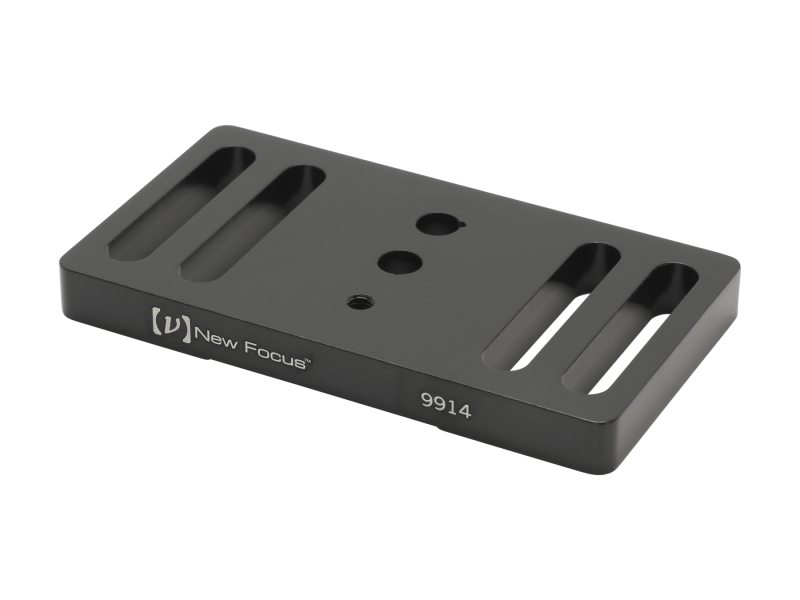

Baseplate, 2.0 in. Width, 1/4-20 (M6) Counterbored

Baseplate, 2.0 in. Width, 1/4-20 (M6) Counterbored

Model: 9914

$23

In Stock

Compare

Add to List

Product Series Overview

Aluminum Slotted Bases

The 9914 Baseplate makes it easy to reach a mounting hole on a conventional optical table that has 1 in. or 25 mm mounting-hole arrays. The Model 9914 has extra pair of slots.

Specifications

Technical Specs

Type

Slotted Base
Length

92.2 mm
Width

50.8 mm
Height

9.1 mm

Thread Type

8-32 THD and 1/4-20 (M6) CLR
Material

Aluminum

Type

Slotted Base
Length

92.2 mm
Width

50.8 mm
Height

9.1 mm

Thread Type

8-32 THD and 1/4-20 (M6) CLR
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9914c (221.5 kB, PDF)
