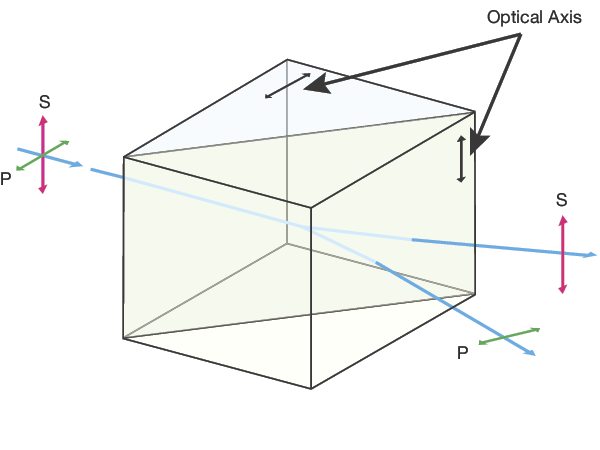

wollaston-polarizing-prisms

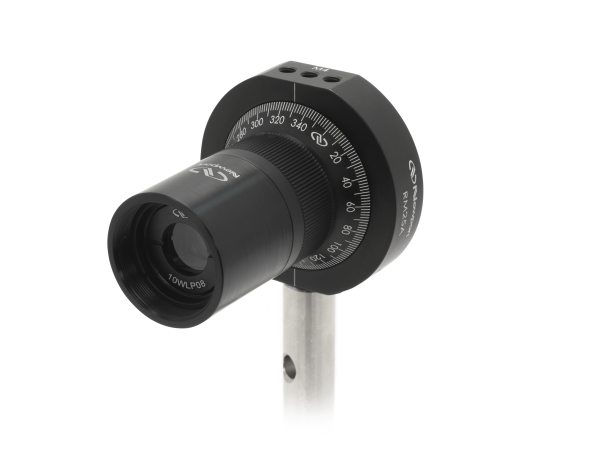

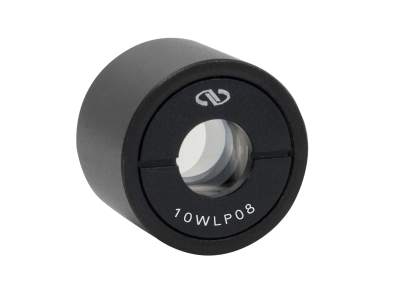

wollaston polarizing prism model 10wlp08

Specifications

Technical Specs

Diameter
25.4 mm
Material
Optical Grade Calcite
Extinction Ratio
>100,000:1
Damage Threshold
1 W/cm²
Surface Quality
20-10 scratch-dig
Surface Flatness
<λ/4 at 632.8 nm

Housing
Black anodized aluminum
Clear Aperture
10.0 mm diameter
Transmitted Beam Deviation
20° (nominal)
Wavefront Distortion
<λ/2 at 632.8 nm, P-V

Diameter
25.4 mm
Material
Optical Grade Calcite
Extinction Ratio
>100,000:1
Damage Threshold
1 W/cm²
Surface Quality
20-10 scratch-dig
Surface Flatness
<λ/4 at 632.8 nm

Housing
Black anodized aluminum
Clear Aperture
10.0 mm diameter
Transmitted Beam Deviation
20° (nominal)
Wavefront Distortion
<λ/2 at 632.8 nm, P-V
