smarttable-hybrid-damped-optical-tables

Type

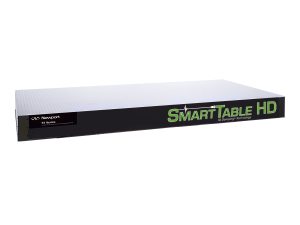

Hybrid Damped SmartTable Optical Table Top
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
2 Precision Tuned Dampers

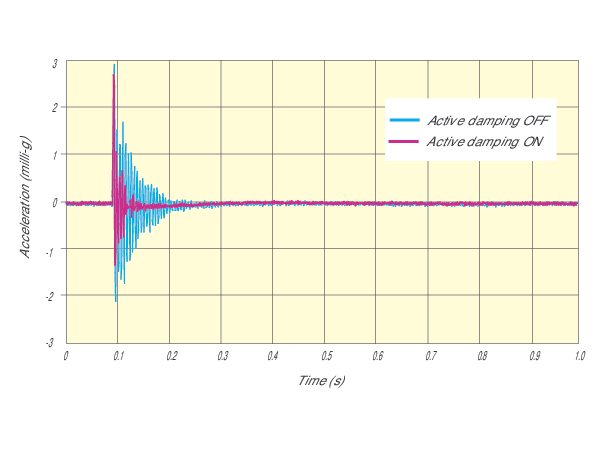

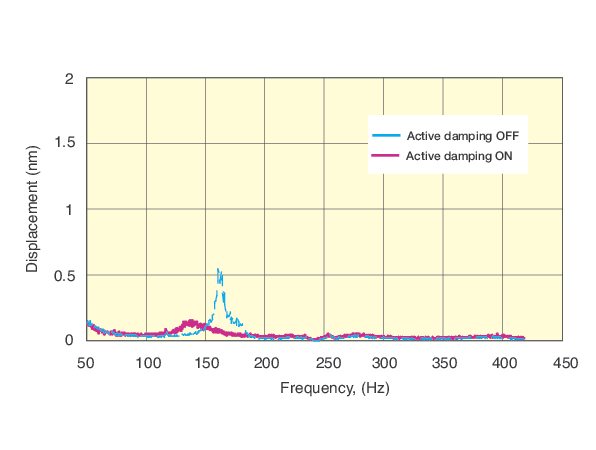

Active Damping
2 IQ Active Dampers
Structural Damping Range
80 to 550 Hz
Working Surface
4.8 mm thick ferromagnetic 430 stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over 2 ft. (600 mm) square
Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)

Alpha-Numeric Grid Labels
Yes
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Bottom Skin Material
4.8 mm thick carbon steel
Vibration Monitor Range
10-820 Hz, 0-0.16 mm/s
Computer Interface
USB
Power Requirements
100-240 VAC; 1.5A, 50/60Hz

Type
Hybrid Damped SmartTable Optical Table Top
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
2 Precision Tuned Dampers
Active Damping
2 IQ Active Dampers
Structural Damping Range
80 to 550 Hz
Working Surface
4.8 mm thick ferromagnetic 430 stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over 2 ft. (600 mm) square
Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)

Alpha-Numeric Grid Labels
Yes
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Bottom Skin Material
4.8 mm thick carbon steel
Vibration Monitor Range
10-820 Hz, 0-0.16 mm/s
Computer Interface
USB
Power Requirements
100-240 VAC; 1.5A, 50/60Hz

Description	Compatibility	Price

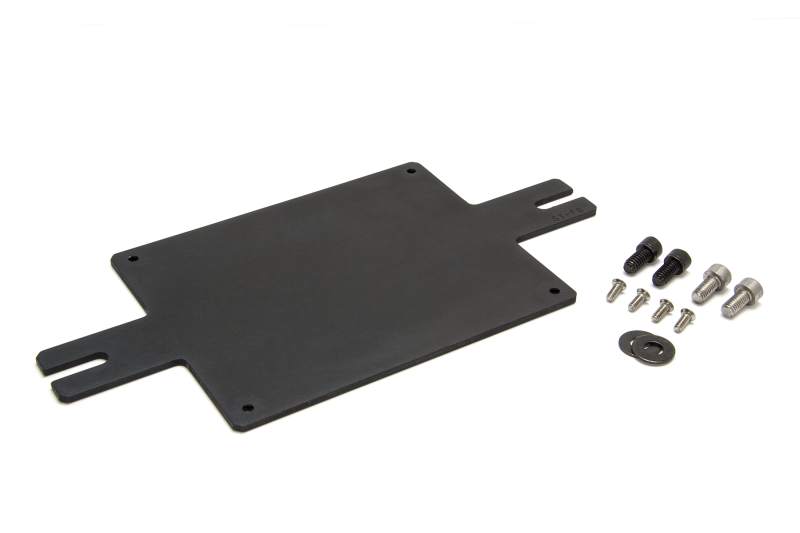

ST-FBMounting Plate, Table Top, ST-300	UNIVERSAL	$105
ST-MSMounting Shelf, Magnetic, ST-300	UNIVERSAL	$148

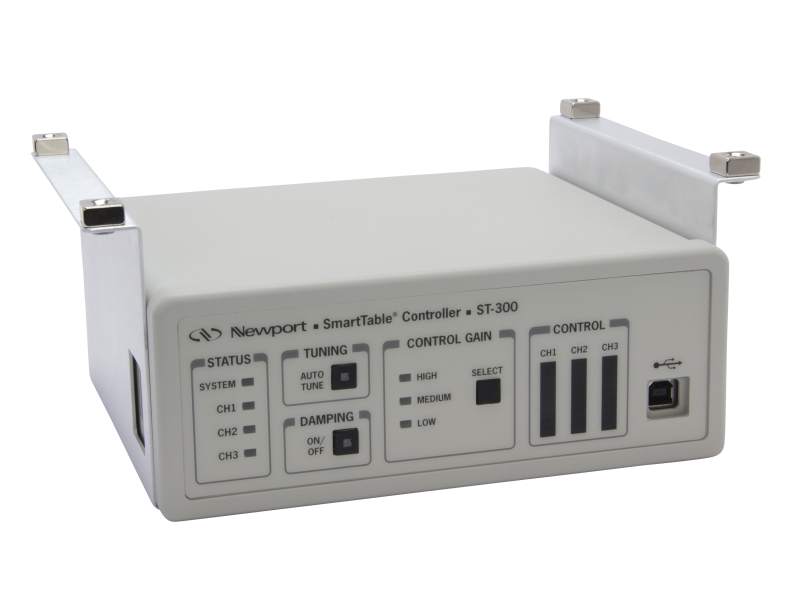

ST-BRKTMounting Bracket, ST-300 and ST-200, 10 in. Diameter Legs	UNIVERSAL	$356

Model: smarttable-hybrid-damped-optical-tables
