Specifications
Type

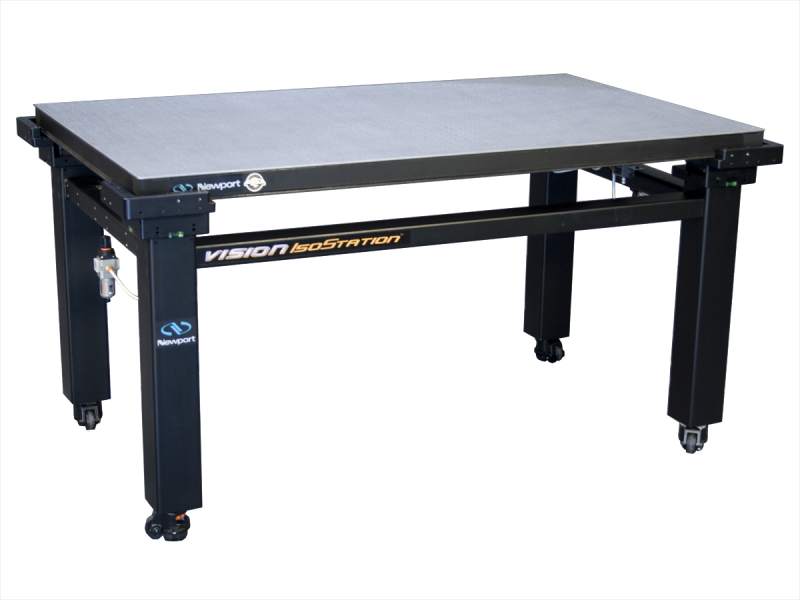

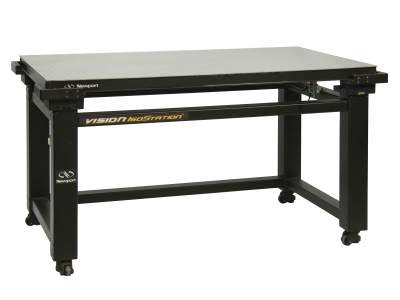

Vision Isostation Optical Workstation
Platform
Scientific Grade Optical Breadboard
Modal Damping
No
Broadband Damping
Constrained layer core, damped working surface, and composite edge finish
Working Surface
4.8 mm thick ferromagnetic 430 stainless steel
Surface Flatness
±0.004 in. (0.1 mm) over any 2 ft. (600 mm) square
Core Design
Trussed hexagonal honeycomb, vertically bonded closed cell construction, 0.010 in. (0.25 mm) steel sheet materials, 0.030 in. (0.76 mm) triple core interface
Bottom Skin Material
3.4 mm thick carbon steel
Mounting Holes
1/4-20
M6 (M- Versions)
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
Mounting Hole Type
Cut (not rolled) threads with countersink
Hole Sealing Type
Easy clean conical cup, 0.75 in. (19 mm) deep, non-corrosive high impact polymer material
Workstation Supports
I-325 Pneumatic Isolators
Load Capacity
1300 lb (590 kg)
