Specifications
Type

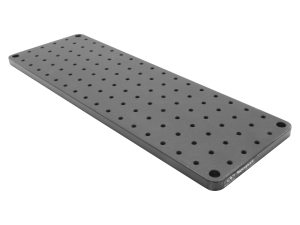

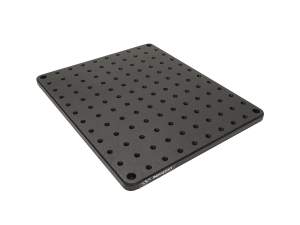

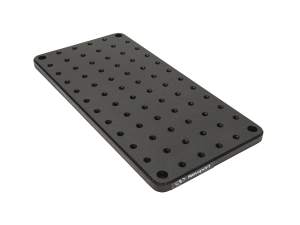

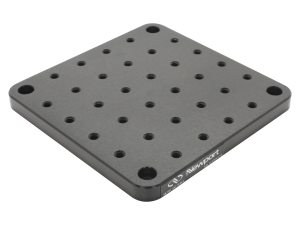

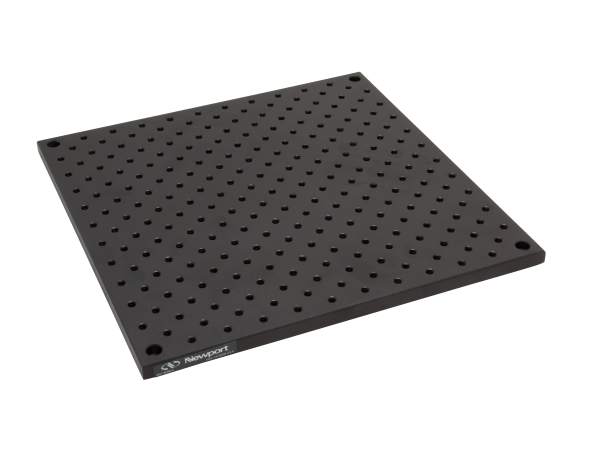

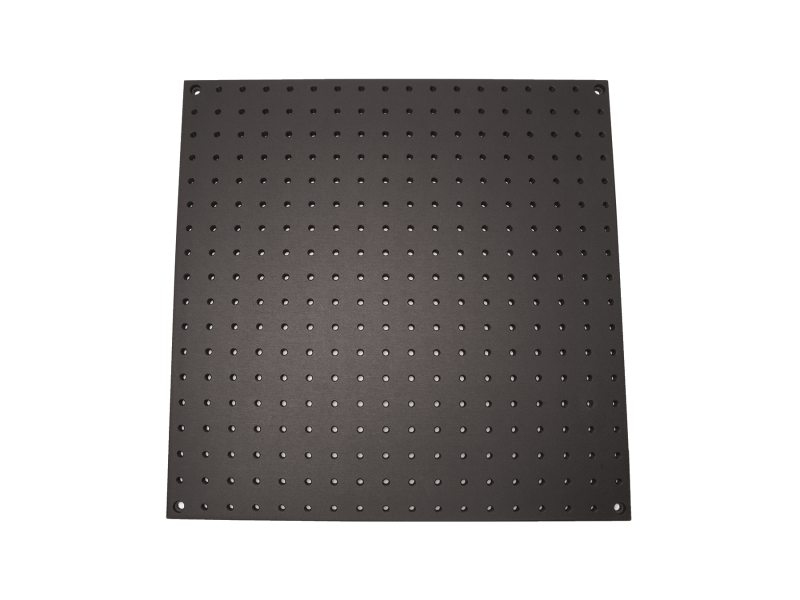

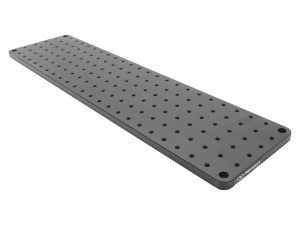

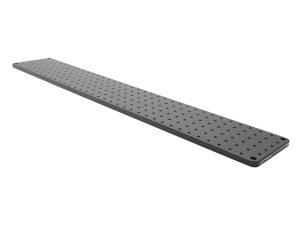

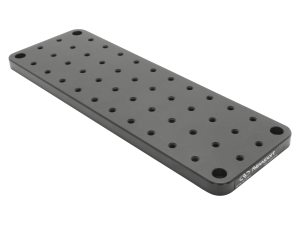

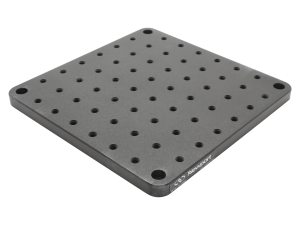

Solid Aluminum Optical Breadboard Plate
Thickness
0.5 in. (12.7 mm)
Working Surface
Low reflective anodized aluminum
Surface Flatness
±0.02 in. (±0.5 mm)
Mounting Holes
1/4-20
M6 (M- Versions)
Number of Counterbored Holes
Four 0.25 in. located at the corners inset 0.5 in. (12.5 mm) from the edge
Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
25 mm grid (M- Versions)
Mounting Hole Borders
0.5 in.
12.5 mm (M- Versions)
