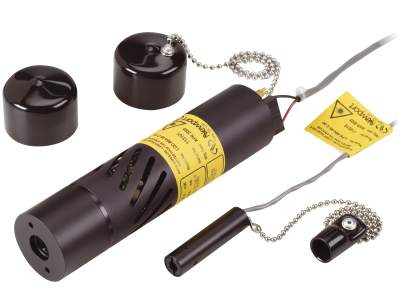

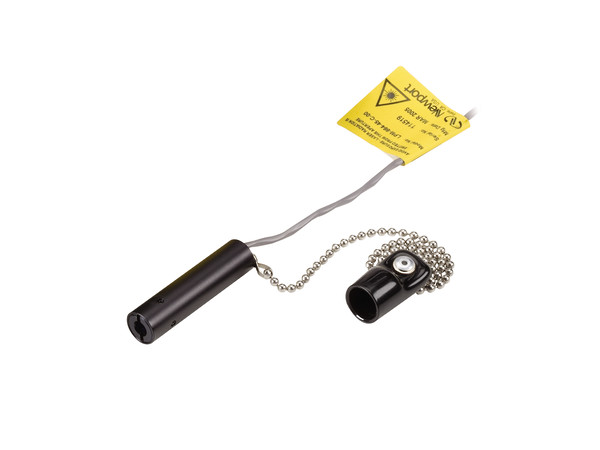

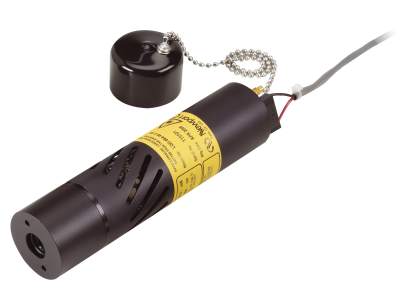

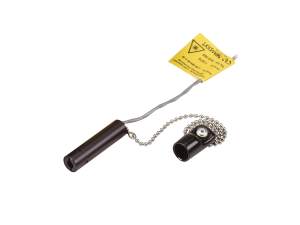

lpm and lqx series laser diode modules

Specifications

Technical Specs

Center Wavelength Tolerance
<700 nm: ±10 nm
700 to 1300 nm: ±15 nm
1300 to 1600 nm: ±20 nm
Power Stability
LPM: <5% (8 hr.)
LQC: <1% (8 hr.)
Maximum Operating Current
LPM: 120 mA
LQC: 3000 mA
Size
LPM: Ø12.7 x 50.8 mm
LQC: Ø38.1 x 157.5 mm
Noise
<0.5%

Power Requirements
LPM: 3.5 to 5 VDC
LQC: 4.8 to 12 VDC
Operating Temperature
0 to 40°C

Center Wavelength Tolerance
<700 nm: ±10 nm
700 to 1300 nm: ±15 nm
1300 to 1600 nm: ±20 nm
Power Stability
LPM: <5% (8 hr.)
LQC: <1% (8 hr.)
Maximum Operating Current
LPM: 120 mA
LQC: 3000 mA
Size
LPM: Ø12.7 x 50.8 mm
LQC: Ø38.1 x 157.5 mm
Noise
<0.5%

Power Requirements
LPM: 3.5 to 5 VDC
LQC: 4.8 to 12 VDC
Operating Temperature
0 to 40°C

Resources & Downloads

Manuals

LPM Laser Diode Modules User's Manual(1.5 MB, PDF)
LQx Series Laser Diode Modules User's Manual(744.2 kB, PDF)

Technical Notes

Tutorials

Laser Diode Technology

Selection Guides

Laser Diode Module Guide

Related Products

Optical Mounts

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		A-2-1.5Optical Mount Adaptor, 50.8 mm to 38.1 mm (2 to 1.5 inch)	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$82

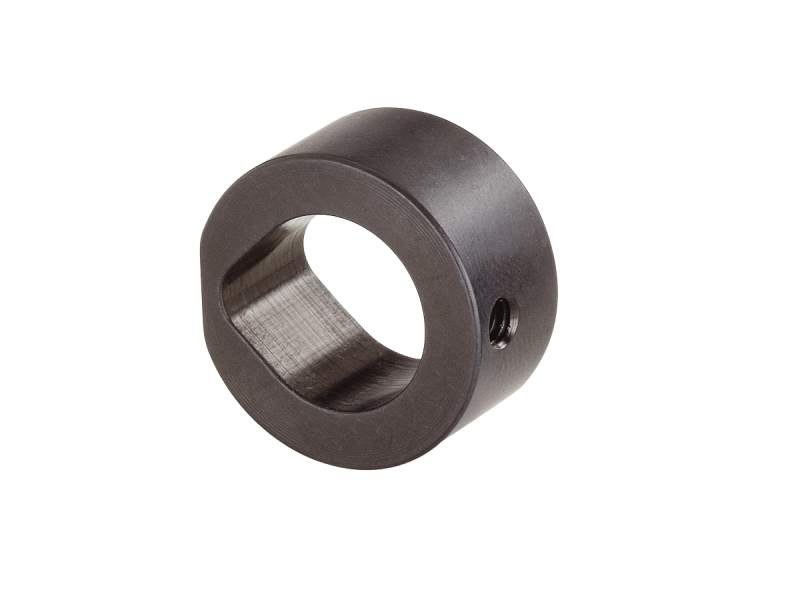

		CLD-1Optical Mount Adapter, 25.4 mm, 0.6 in. Cylindrical Laser Diode	UNIVERSAL			$44
		U100-AMirror Mount, ULTIMA^®, Clear Edge, 1.0 in., No Actuators	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$125

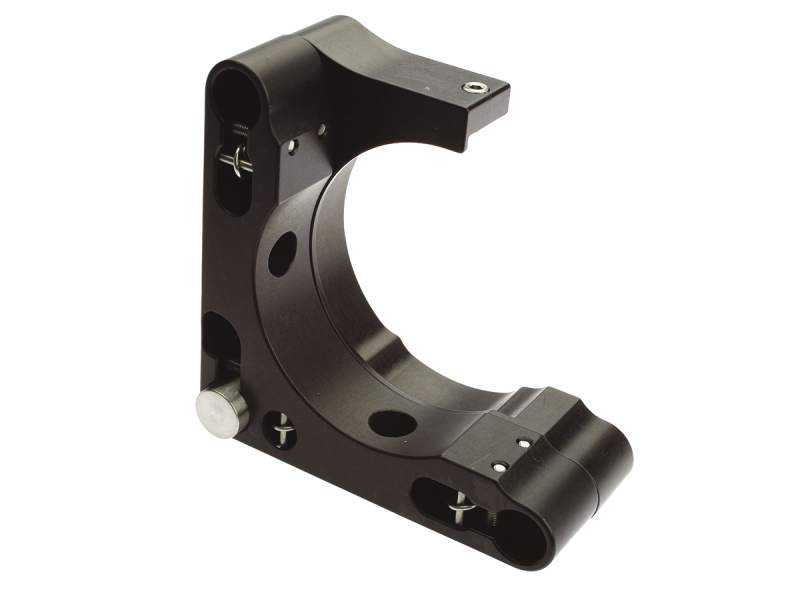

		U200-AMirror Mount, ULTIMA^®, Clear Edge, 2.0 in., No Actuators	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$192

Interface Cable

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

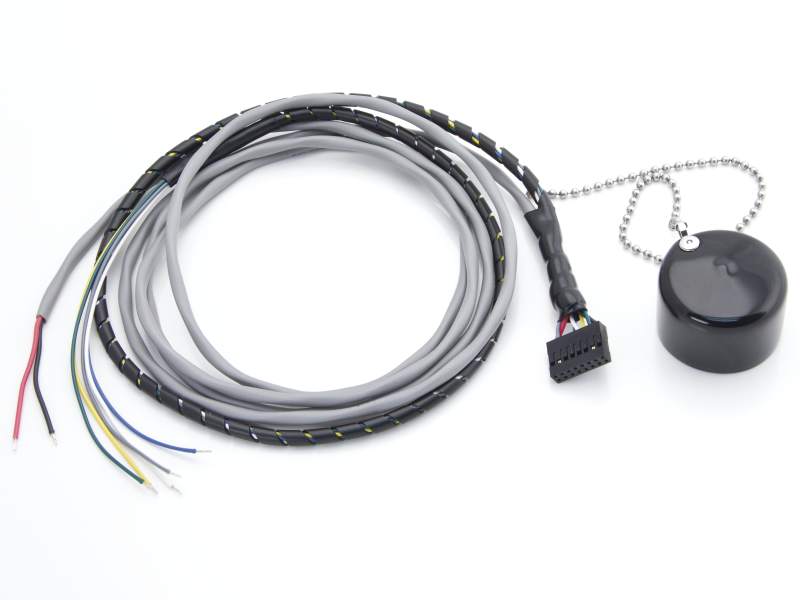

		LQC-CABInterface Cable, LQC Laser Modules	UNIVERSAL			$50

Power Supplies

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

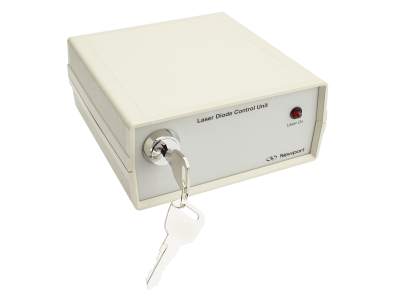

		LPMS-5-110Power Supply, 635-2330 nm Laser Diode Modules, 5 VDC, 110 VAC	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$405
