Sorry, this product is no longer offered for sale.

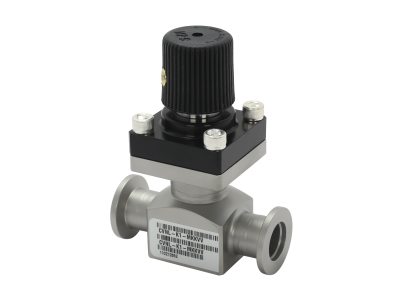

Cv Compact Bellows-sealed Isolation Valves
Model: cv-compact-isolation-valves
Specifications
- TypeVacuum Isolation Valve
- OrientationSeals against atmosphere at either port
- Flange TypeISO-KF
- Vacuum Range10-9 Torr to Atmosphere
- Nose Seal MaterialViton
- Bonnet Seal MaterialViton
- Helium Leak Rate<1.0 X 10-9 std cc/sec
- Limit SwitchNo
- Operating Temperature Range-26° to 125°C
- Typical Life1,000,000 cycles
- TypeVacuum Isolation Valve
- OrientationSeals against atmosphere at either port
- Flange TypeISO-KF
- Vacuum Range10-9 Torr to Atmosphere
- Nose Seal MaterialViton
- Bonnet Seal MaterialViton
- Helium Leak Rate<1.0 X 10-9 std cc/sec
- Limit SwitchNo
- Operating Temperature Range-26° to 125°C
- Typical Life1,000,000 cycles
