- High Purity Fused Silica Plano-Convex Lenses
- UV High Energy Plano-Convex Lenses
Specifications

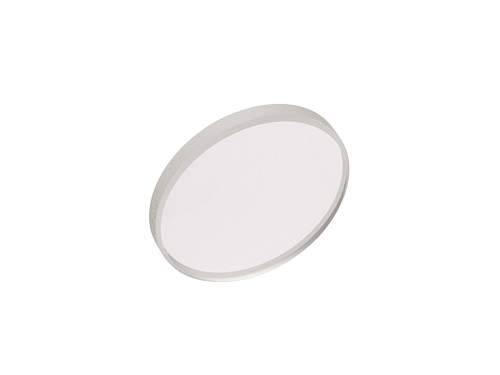

- Lens ShapePlano-Convex
- Diameter25.4 mm

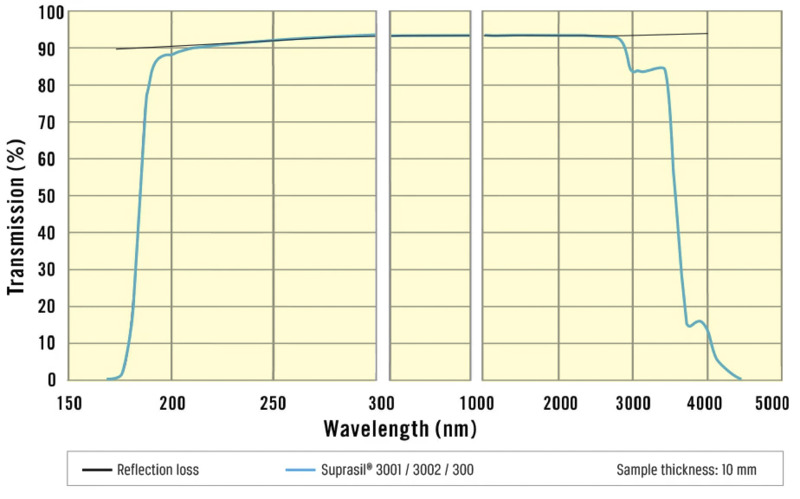

- Lens MaterialSuprasil 300 or equivalent

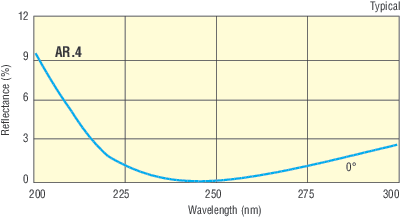

- Antireflection Coating230 to 266 nm
- Coating TypeUV Multilayer

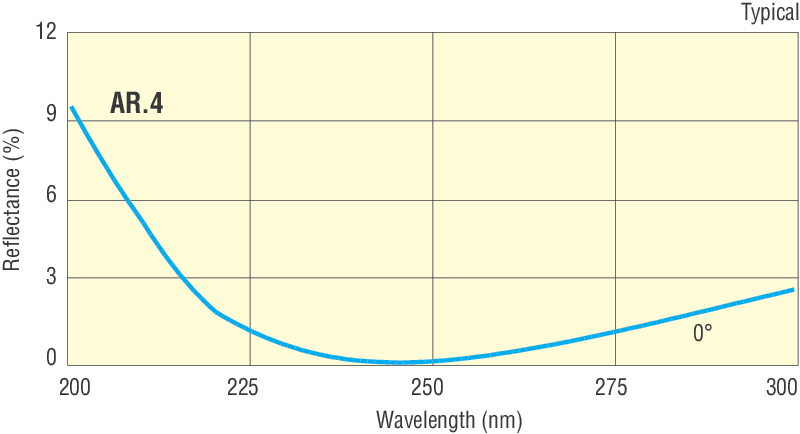

- Coating CodeAR.4
- ReflectanceRavg<0.50% @ 230-266 nm
- Surface Quality15-5 scratch-dig
- Surface Flatnessλ/10
- λ/8
- 1.5 λ
- Chamfers0–0.8 mm face width
- Chamfers Angle/Tolerance45° ±15°, typical
- Focal Length Tolerance±1%
- Diameter Tolerance+0/-0.1 mm
- Center Thickness Tolerance±0.1 mm
- Clear Aperture22.86 mm
- Lens ShapePlano-Convex
- Diameter25.4 mm
- Lens MaterialSuprasil 300 or equivalent
- Antireflection Coating230 to 266 nm
- Coating TypeUV Multilayer
- Coating CodeAR.4
- ReflectanceRavg<0.50% @ 230-266 nm
- Surface Quality15-5 scratch-dig
- Surface Flatnessλ/10
- λ/8
- 1.5 λ
- Chamfers0–0.8 mm face width
- Chamfers Angle/Tolerance45° ±15°, typical
- Focal Length Tolerance±1%
- Diameter Tolerance+0/-0.1 mm
- Center Thickness Tolerance±0.1 mm
- Clear Aperture22.86 mm
