UV Coated UVFS Plano-Convex Cylindrical Lenses

Specifications

Technical Specs

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Lens Material
UV Fused Silica

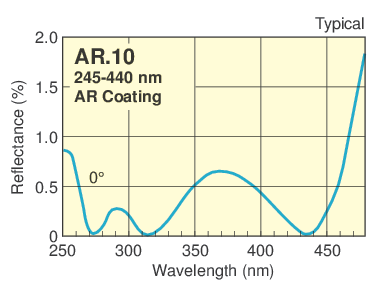

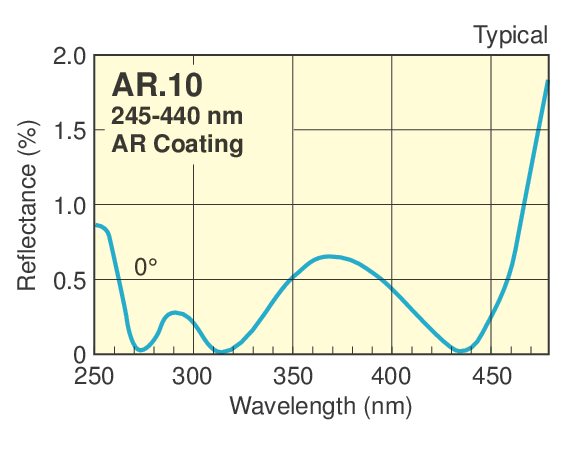

Antireflection Coating
245-440 nm
Coating Type
Broadband UV
Coating Code
AR.10
Damage Threshold
2 J/cm², 10 nsec pulses, 10 Hz at 355 nm

Surface Quality
40-20 scratch-dig
Surface Flatness
λ/2-λ/4
Focal Length Tolerance
±2.0%
Clear Aperture
≥central 80% of dimensions
Cleaning
See How to Clean Optics

Lens Type
Cylindrical
Lens Shape
Plano-Convex
Lens Material
UV Fused Silica
Antireflection Coating
245-440 nm
Coating Type
Broadband UV
Coating Code
AR.10
Damage Threshold
2 J/cm², 10 nsec pulses, 10 Hz at 355 nm

Surface Quality
40-20 scratch-dig
Surface Flatness
λ/2-λ/4
Focal Length Tolerance
±2.0%
Clear Aperture
≥central 80% of dimensions
Cleaning
See How to Clean Optics
