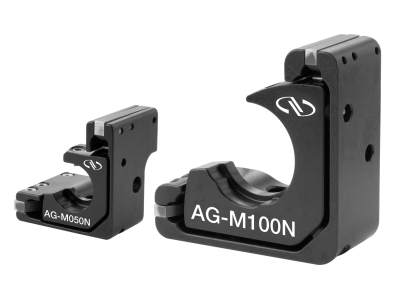

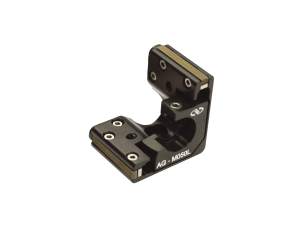

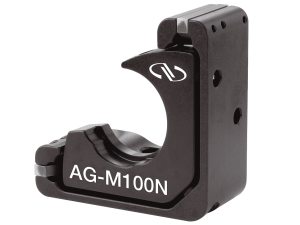

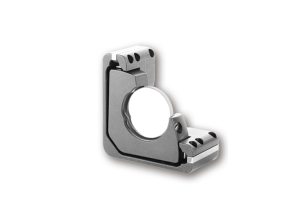

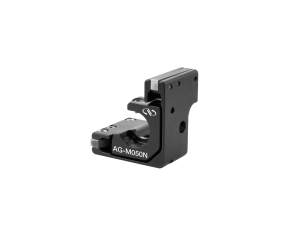

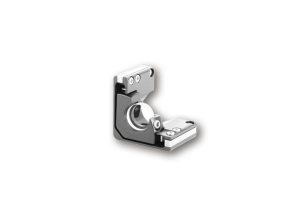

Agilis™ Piezo Mirror Mounts

Specifications

Technical Specs

Motorized Axes
2
Angular Range
±2°
Thread Type
8-32 (M4) CLR
Cable Length
1.2 m
Connector Type
4-wire mini-DIN

Optic Thickness
0.16 to 0.24 in. (4 to 6 mm)
Accuracy
0.05° for AG-M050L(V6) and AG-M100L(V6)

Motorized Axes
2
Angular Range
±2°
Thread Type
8-32 (M4) CLR
Cable Length
1.2 m
Connector Type
4-wire mini-DIN

Optic Thickness
0.16 to 0.24 in. (4 to 6 mm)
Accuracy
0.05° for AG-M050L(V6) and AG-M100L(V6)

Resources & Downloads

Literature

Agilis Data Sheet(1.3 MB, PDF)
Agilis Series Piezo Motor Driven Positioners(752.4 kB, PDF)
Nanopositioning Solutions(9.3 MB, PDF)
Agilis™ Series Piezo Motor Driven Positioners(1.7 MB, PDF)

Manuals

Agilis Piezo Motor Driven Components User Manual(2.6 MB, PDF)

Related Products

Agilis Controllers and Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AG-UC8PCMotor Controller, Piezo, 8-Axis, Agilis™, OEM, USB/RS232/RS485	UNIVERSAL		In Stock	$1,006
		AG-UC2Motor Controller, Piezo, 2 Axis, Agilis™, Hand-held	UNIVERSAL		2 Weeks	$598
		AG-UC8Motor Controller, Piezo, 8 Axis, Agilis™	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,098

Agilis Mount with Conex Controller

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CONEX-AG-M100DPiezo Motor Mirror Mount, Absolute Positioning, Integrated Controller	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,281
