Plano-Convex Lens, Zinc Selenide, 25.4 mm, 500 mm FL, 600-16000 nm

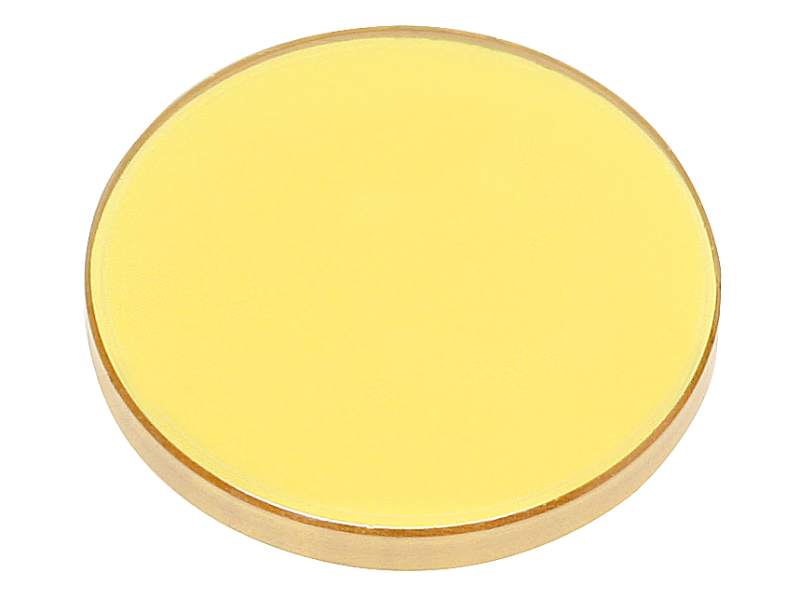

zinc selenide optical window model ZNPX15 made with znse

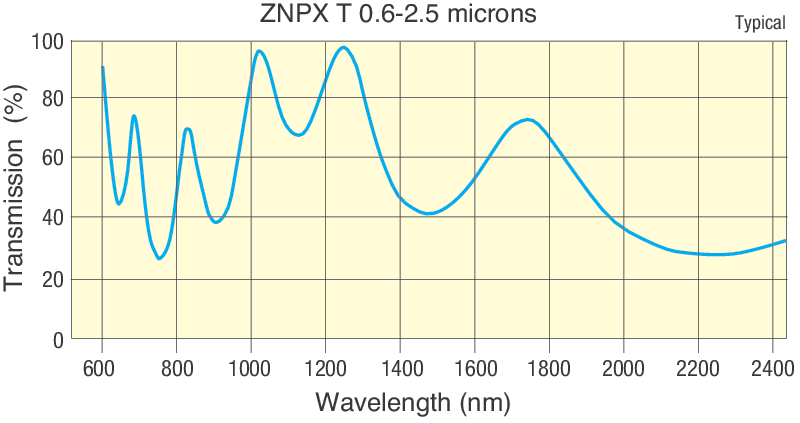

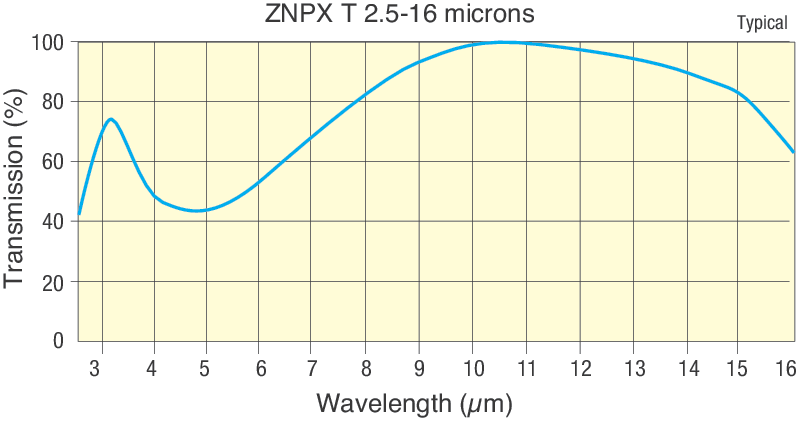

ZNPX17 is a Plano-Convex Infrared Lens, made of ZnSe material. It has a diameter of 25.4 mm, and an effective focal length of 500 mm. Zinc Selenide is an excellent material choice for IR lens because it can cover a large wavelength range, from 600 nm to 16 µm. Its low absorption coefficient makes it a perfect candidate for applications/instruments using C0₂ lasers. In mid IR regime, the material exhibits very low GVD, which makes it suitable for applications using femtosecond IR pulses.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Diameter
25.4 mm
Lens Material
ZnSe
Antireflection Coating
10.6 µm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4 at 633 nm
F/#
19.69
Effective Focal Length (EFL)
500 mm
Radius of Curvature (R)
701.398

Edge Thickness (Te)
2.89 mm
Center Thickness (Tc)
3.0 mm
Design Wavelength
10.6 µm
Centration
≤3 arc min
Diameter Tolerance
+0/-0.12 mm
Center Thickness Tolerance
±0.12 mm
Clear Aperture
≥central 90% of diameter

Lens Shape
Plano-Convex
Diameter
25.4 mm
Lens Material
ZnSe
Antireflection Coating
10.6 µm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4 at 633 nm
F/#
19.69
Effective Focal Length (EFL)
500 mm
Radius of Curvature (R)
701.398

Edge Thickness (Te)
2.89 mm
Center Thickness (Tc)
3.0 mm
Design Wavelength
10.6 µm
Centration
≤3 arc min
Diameter Tolerance
+0/-0.12 mm
Center Thickness Tolerance
±0.12 mm
Clear Aperture
≥central 90% of diameter

Resources & Downloads

Other

ZNPX17_ROHS2-2021.pdf(281.7 kB, PDF)
